Sold
General Specifications
- X-Axis travel : 1000 mm
- Y-Axis Travel : 800 mm
- Z-Axis Travel : 800 mm

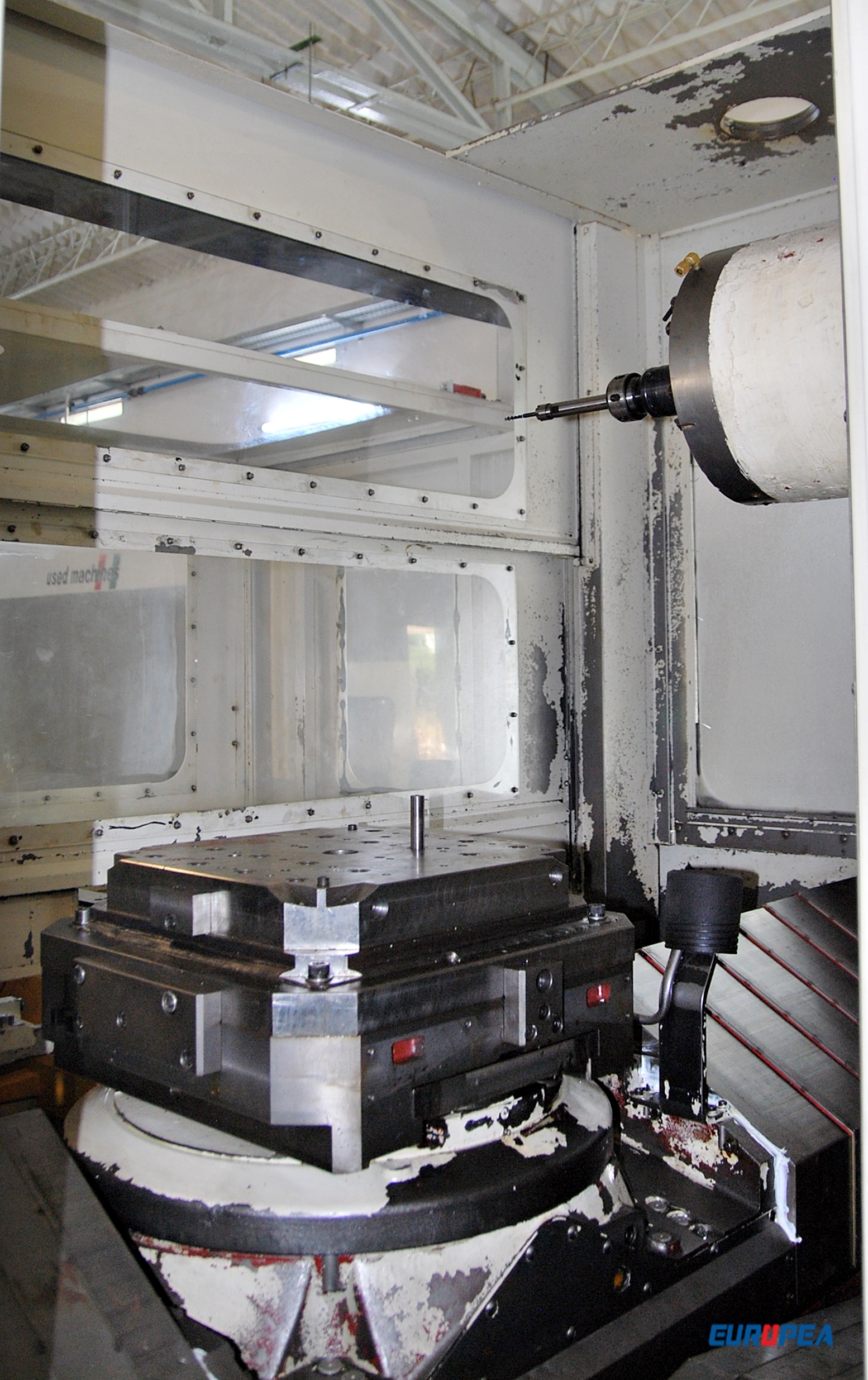

- pallet Size : 630 X 630 mm
- Max Loading Capacity : 1200 Kg

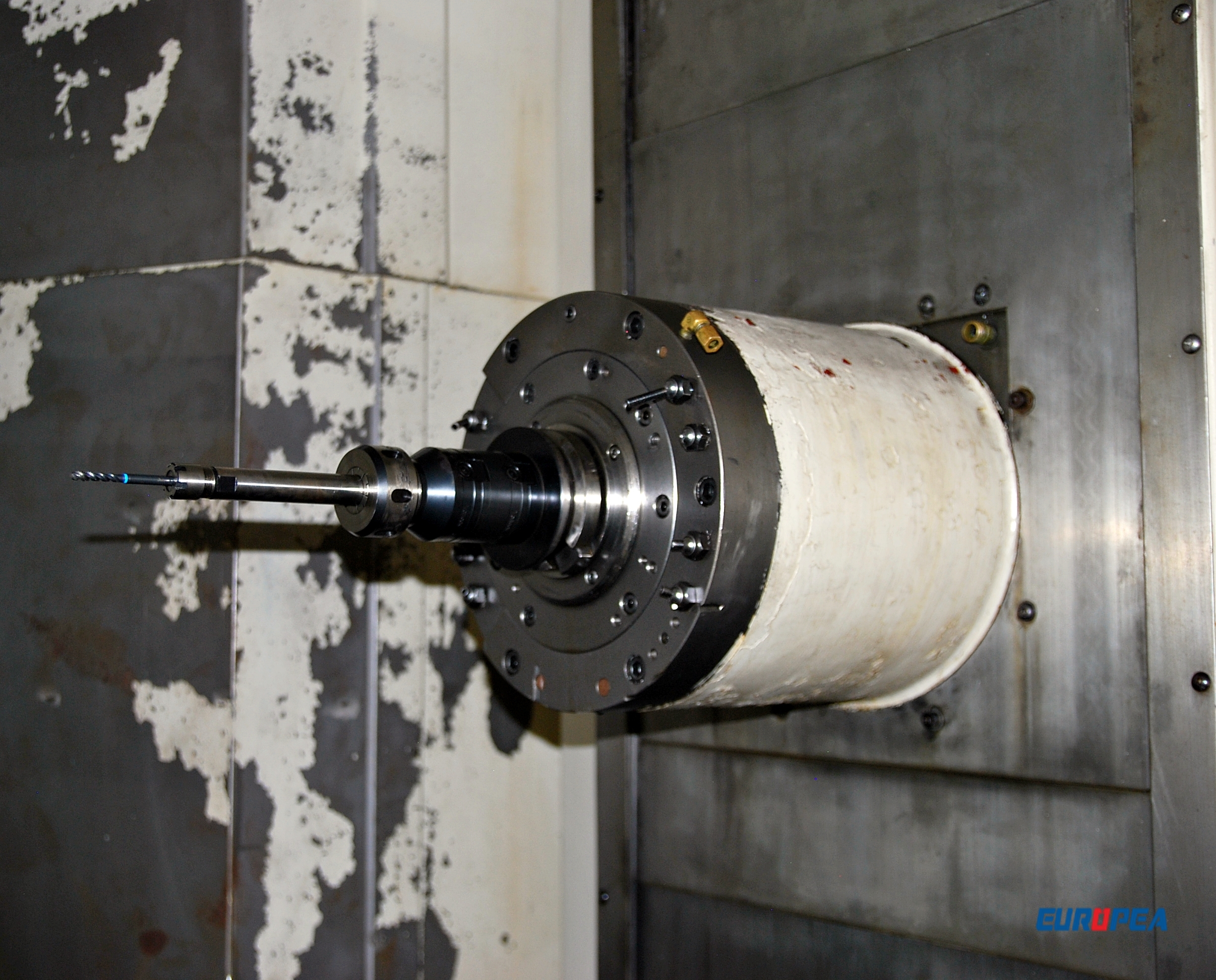

- Spindle Nose Taper : BT 50

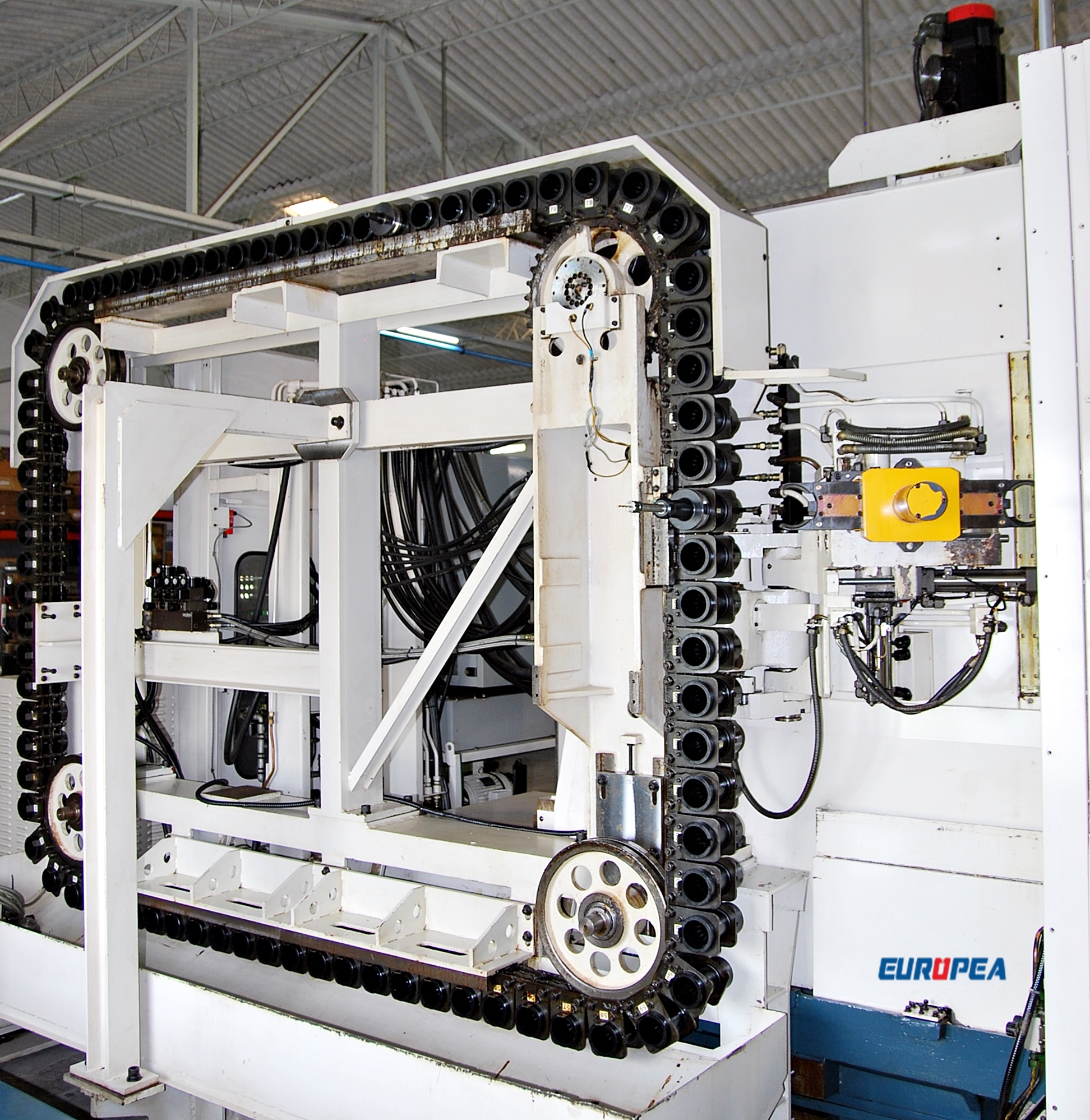

- Tool Capacity : 80 Nos
Product Info
- Machine Equipped with,
- 1. Chip Conveyor & Coolant Tank
- 2. Paper Filtration Unit
- 3. Spindle Through Coolant
- 4. Extra Working Pallet
- 5. Tool Holders
- 6. Machine Manuals & Base Plates
MACHINE DIMENTIONS
- Machine Height - 3488 mm
- Machine Weight - 16,000 Kgs
POWER CONSUPTION
- 1. Electric Power Supply - 90 KVA
- 2. Spindle Motor Output (30 Min. Rating) - AC 30 kW 40 HP (STD. High-Speed type)
