Sold
General Specifications
- Max Swing : 450 mm

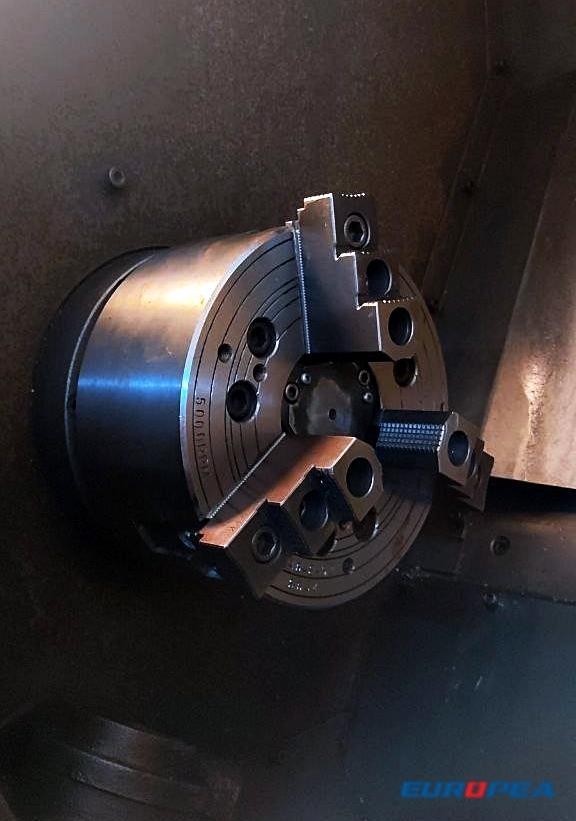

- Chuck Diameter : 210 Mm
- Machining Diameter : 210 Mm
- Machining length : 390 Mm
- Bar Capacity. 51 MM : -
- Spindle Speed : 25 to 4000 RPM
- Spindle Nose. A2-6 : -
- No Of Tools : 10 Tools
- X Axis Feed : 160 MM
- Z Axis Feed : 410 MM
- Tail Stock Stroke : 400 MM
- Tail Stock Taper : MT 4
Product Info
- MOTOR POWER SPECS:
- 1.Spindle Continuous / 50% ED - 15 / 20 HP
- 2. X Axis Feed Motor - 1.9 HP
- 3. Z Axis Feed Motor - 1.9 HP
- 4. Coolant Unit - 1/4 HP
- 5. Power Capacity - 22 KVA
- Machine Total Weight - 4,100 KG
Machine Equipped with
- 1. Chip Conveyor
- 2. Coolant Tank
- 3. Tool Holders & Jaws
- 4. Base Plate & Manuals
