QUICKTECH | SMART MC 1060 | No
Vertical Machining Center

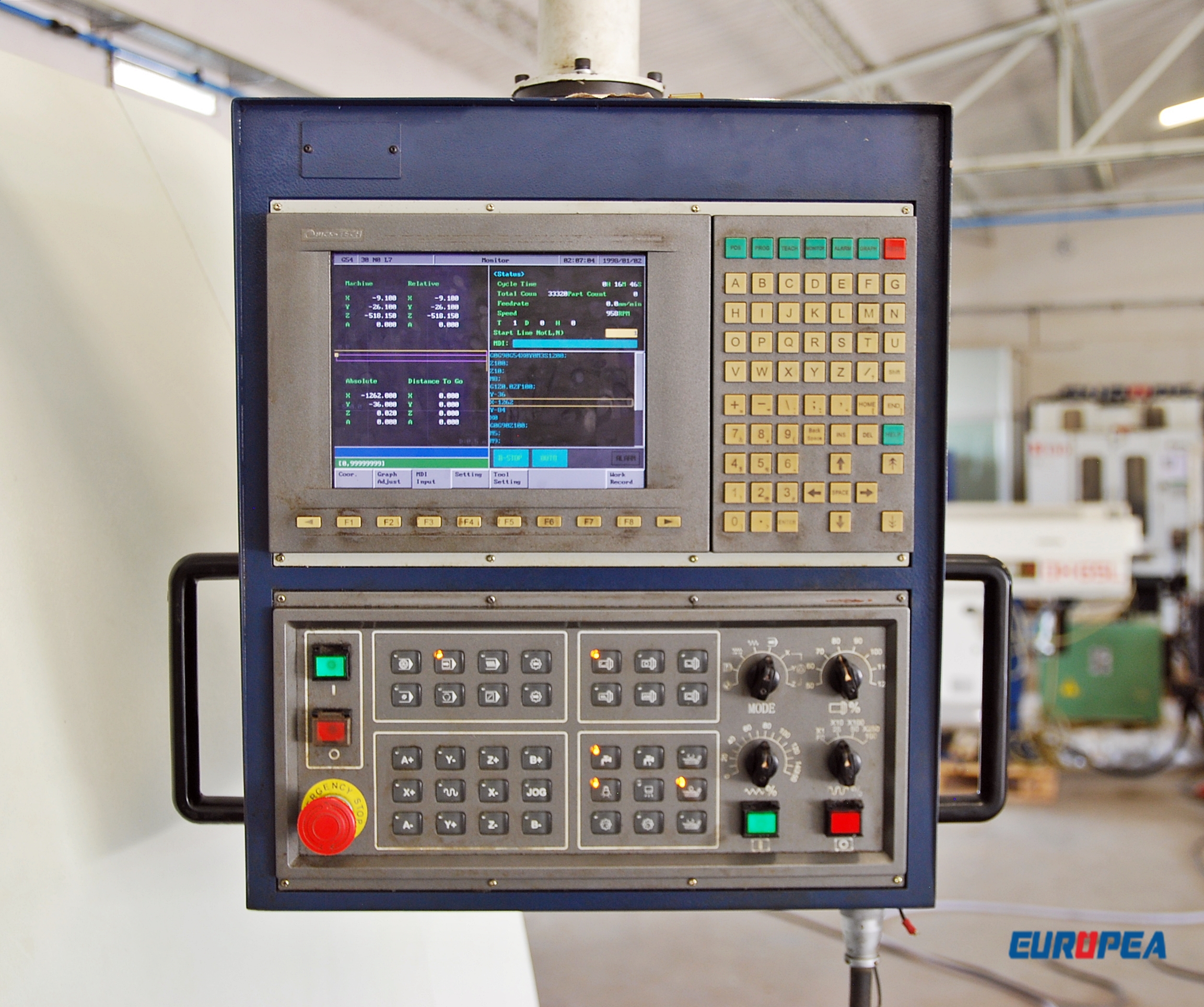

Control : PC SMART 2
Year : 2005
Enquire Now
Sold
General Specifications
- X Axis Travel : 1200 mm
- Y Axis Travel : 600 mm
- Z Axis Travel : 650 mm
- Working Area : 1200 X 600 mm

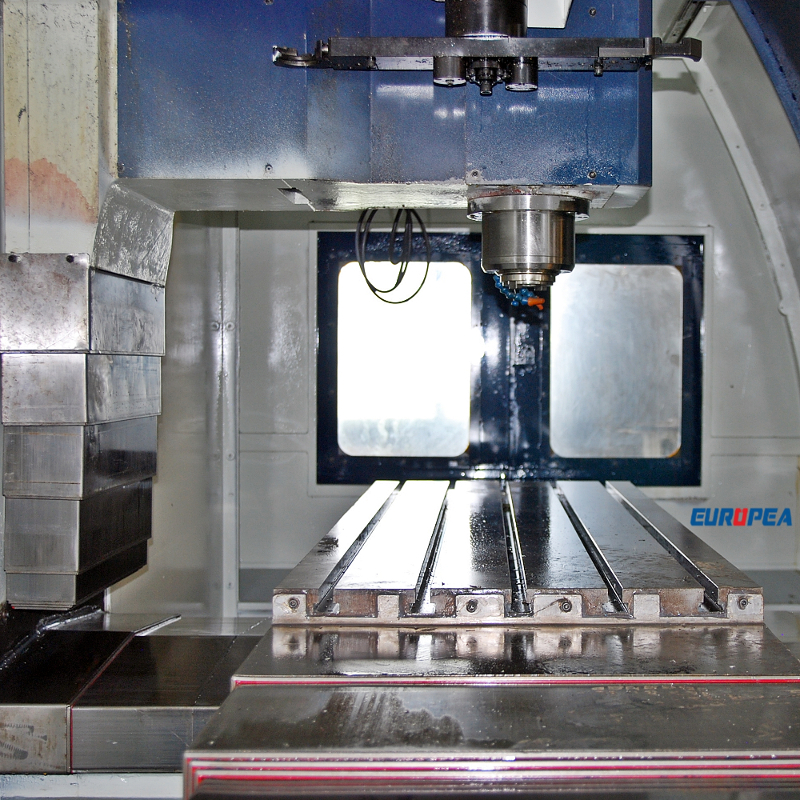

- Table Dimension : 1300 mm X 600 mm
- Max. Load Capacity : 750 KG

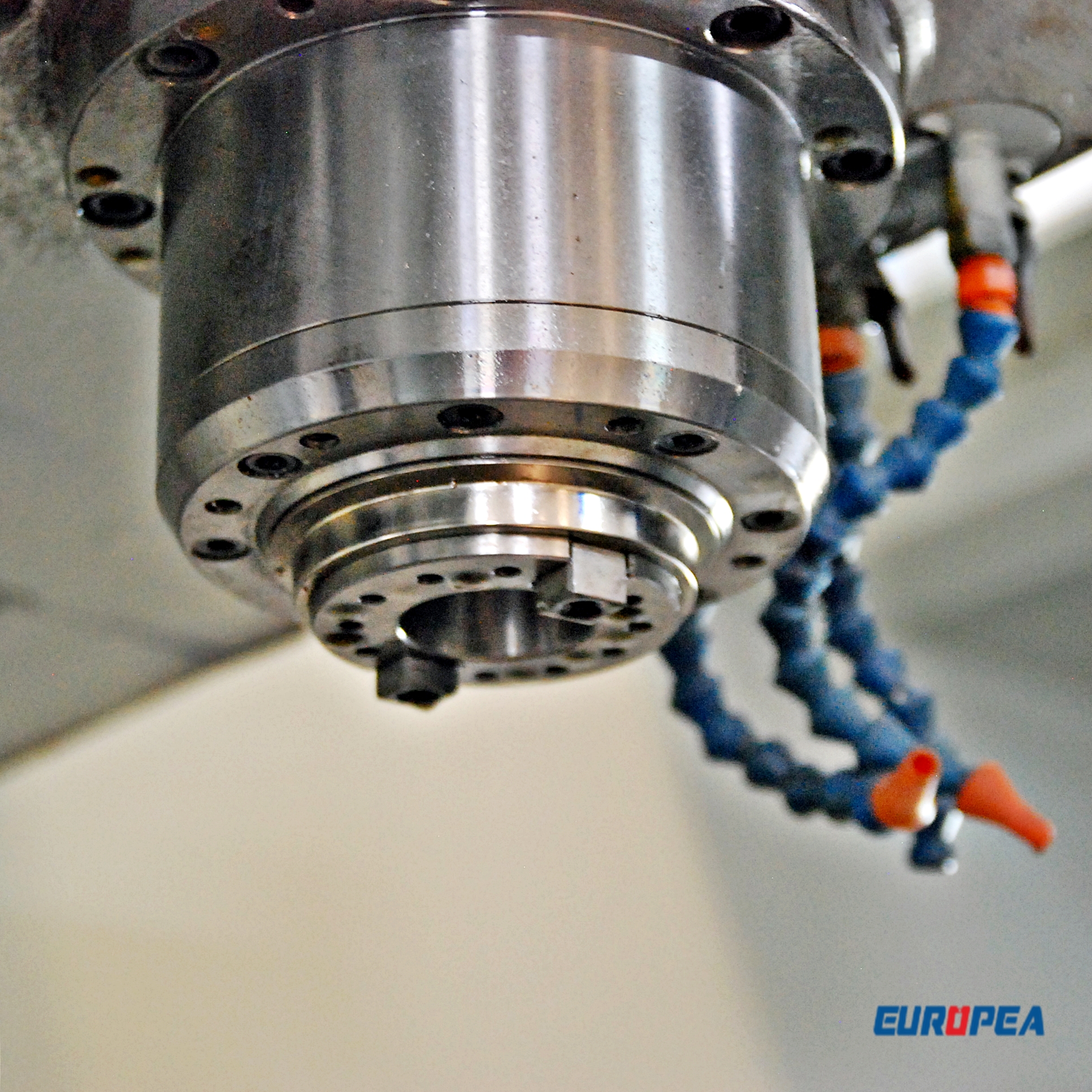

- Spindle Speed : 250 to 8000 RPM
- Spindle Type : BT 40

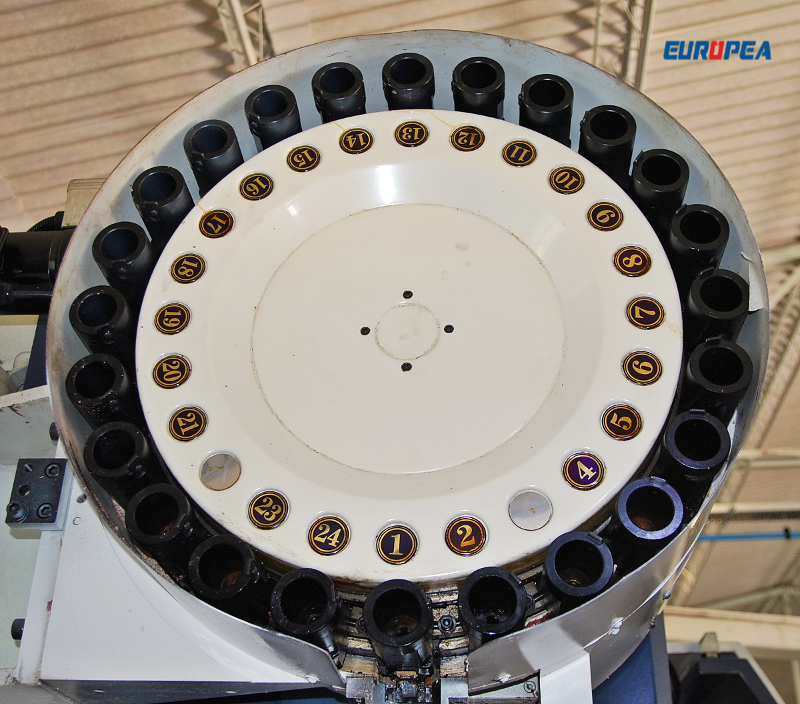

- ATC Type : ARM Type
- No of Tools : 24 Tools
Product Info
- Equipped with
- 1.Paper Filtration unit
- 2. Screw Type Chip Conveyor

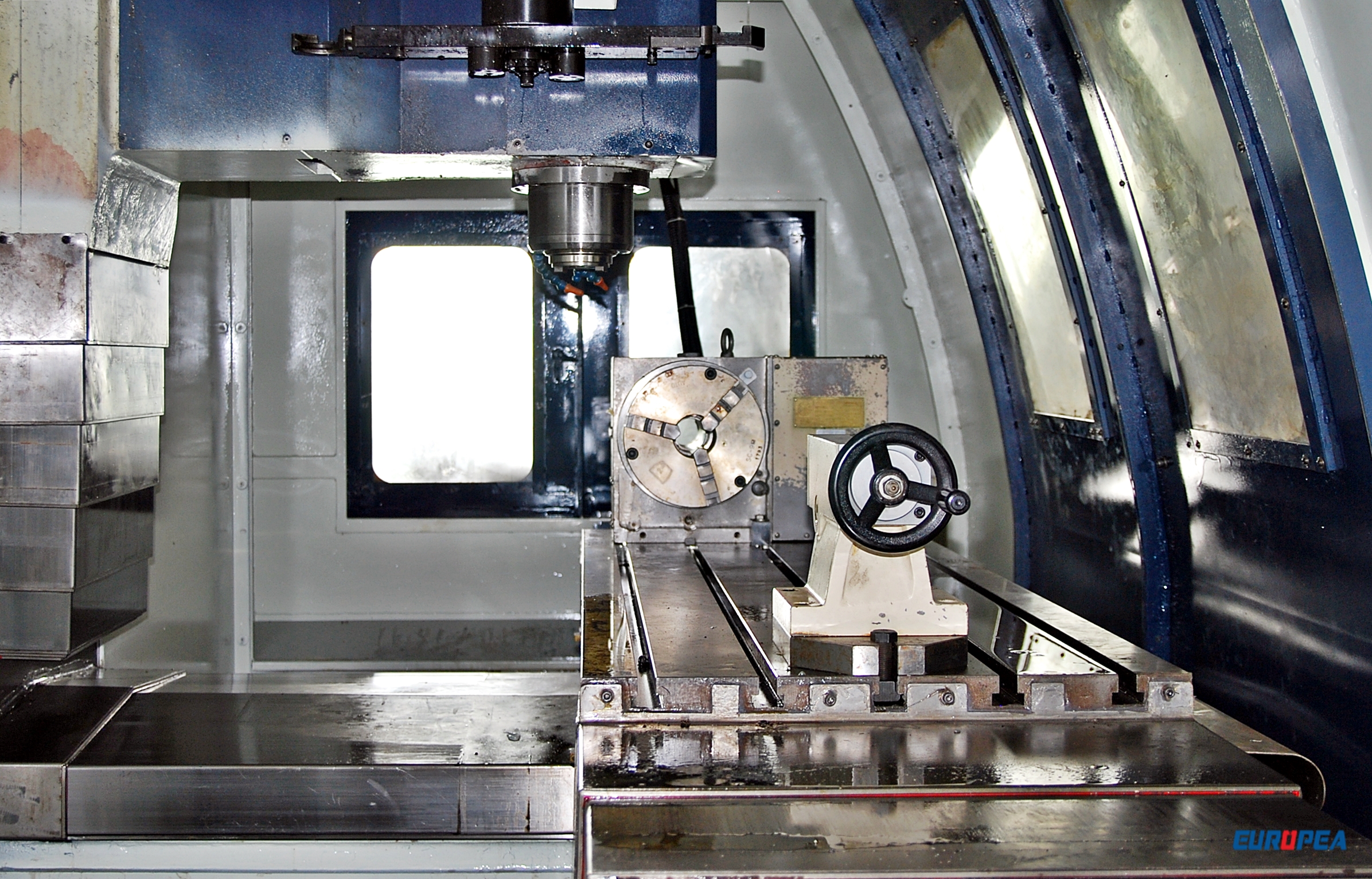

- 3. 4th Axis Rotary table 250 mm Diameter
- 4. Tail Stock
- 5. Coolant Through Spindle
- 6. Box Guide ways
- 7. Coolant tank
- 8. Machine Base Plates and Manuals
MACHINE DIMENSIONS
- Machine length - 3500 mm
- Machine Width - 2800 mm
- Machine Height - 3000 mm
- Machine Weight - 6100 mm
