Available
General Specifications

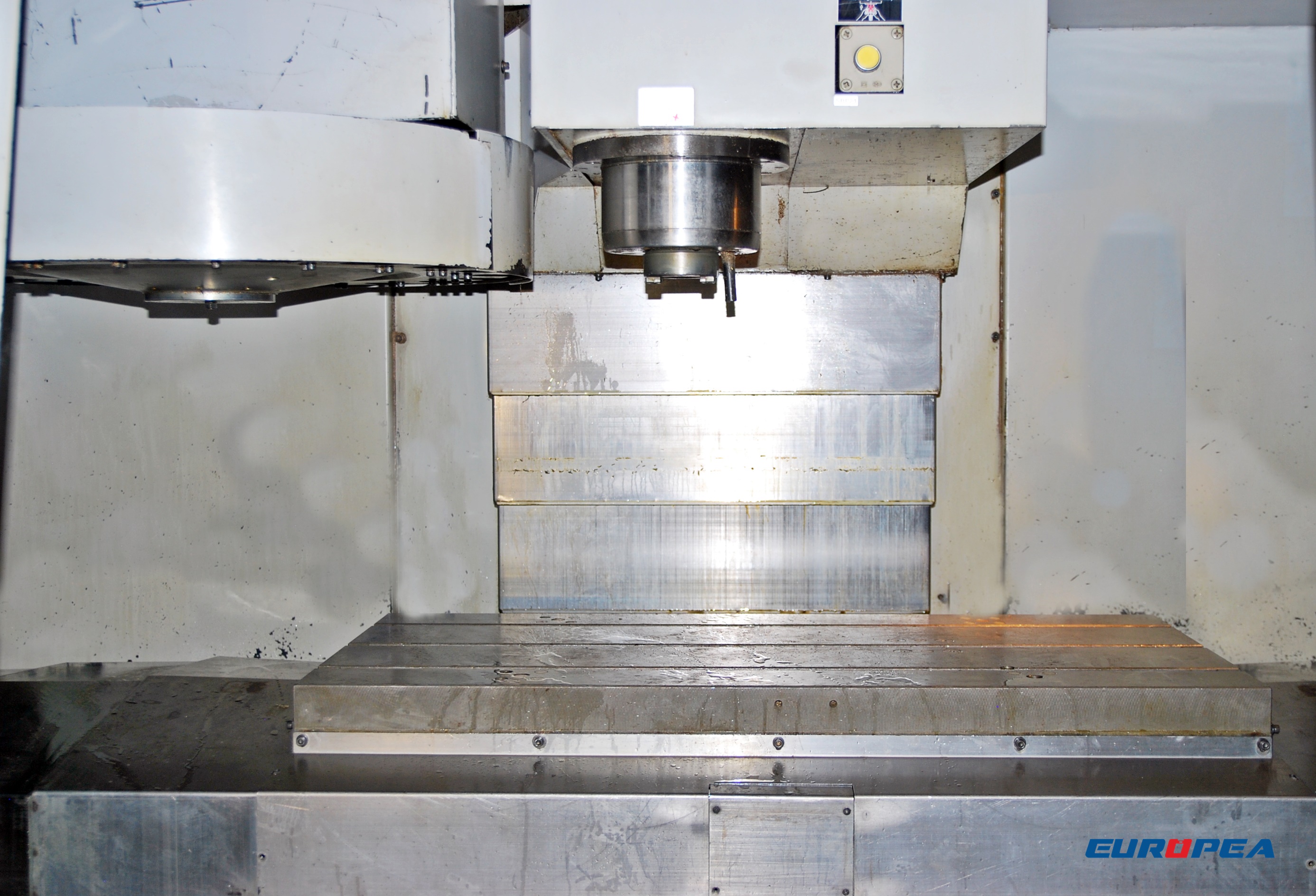

- WORK TABLE : -
- Dimension : 1070 X 500 MM
- Working Area : 1020 X 510 MM
- Table max Load : 300 Kg
- : -
- MOVEMENTS : -
- X Axis : 1020 MM
- Y Axis : 510 MM
- Z Axis : 510 MM
- SPINDLE : -
- Spindle Nose : ISO 40
- Spindle Diameter : 75 MM
- Spindle RPM : 45 to 4500 V/Min

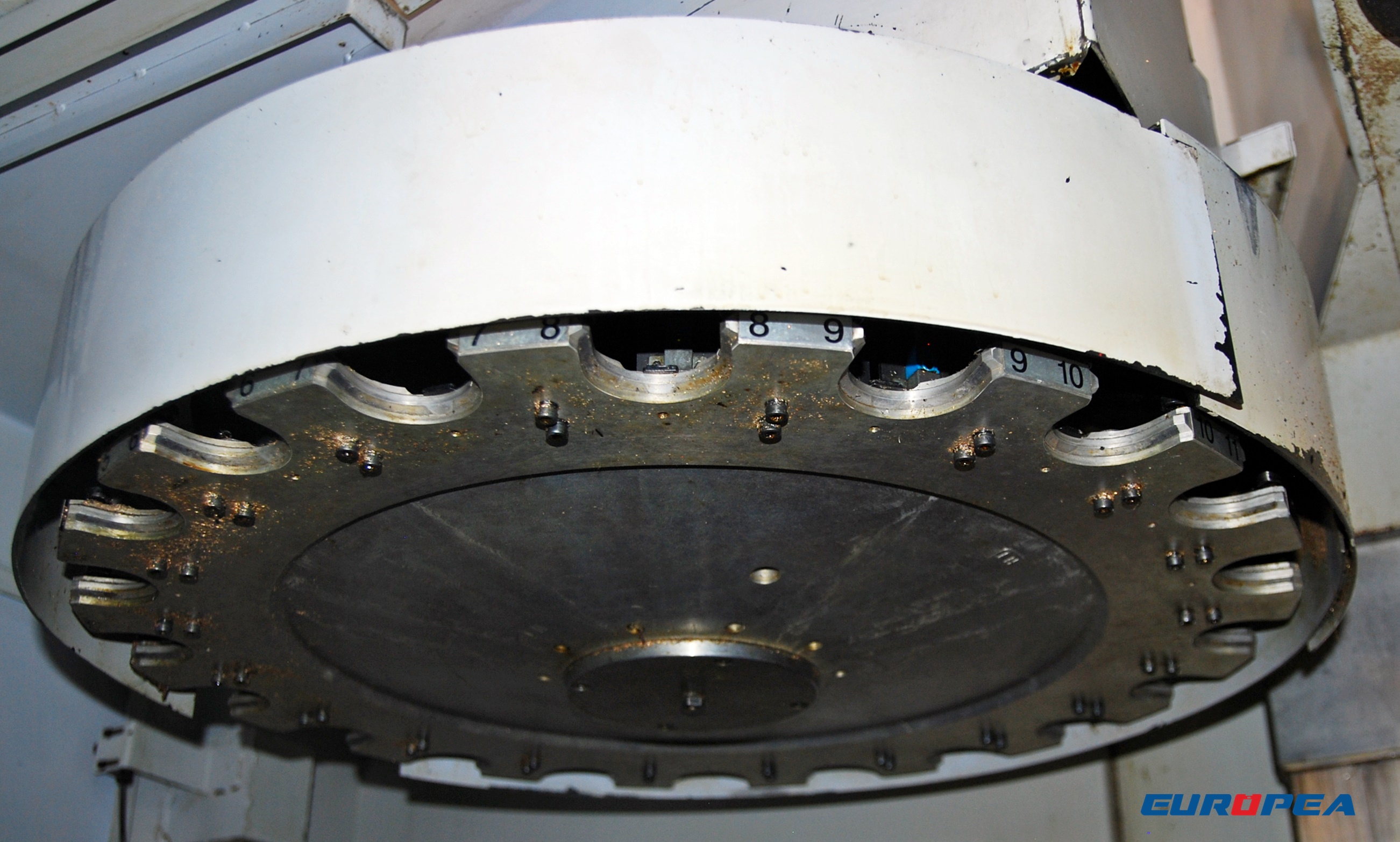

- TOOL MAGAZINE : -
- Tool Capacity : 20 Tools
- Max. Tool Dimension : 89 X 250 MM (Diameter X Length)
- Max Tool Weight : 6 Kg
- Tool holders Spec : BT 40
Product Info
- Machine Equipped with
- 1. Chip Conveyor
- 2. Coolant Tank
- 3. Leveling Pads
- 4. Manual books
- MOTORS SPEC:
- 1. Spindle Motor - 5.5 / 7.5 kW (Cont. / 30 Min)
- 2. Servo Motor (X,Y & Z) - 1 kW (With the Brake in Z Axis)
- 3. Coolant Motor - 80 W

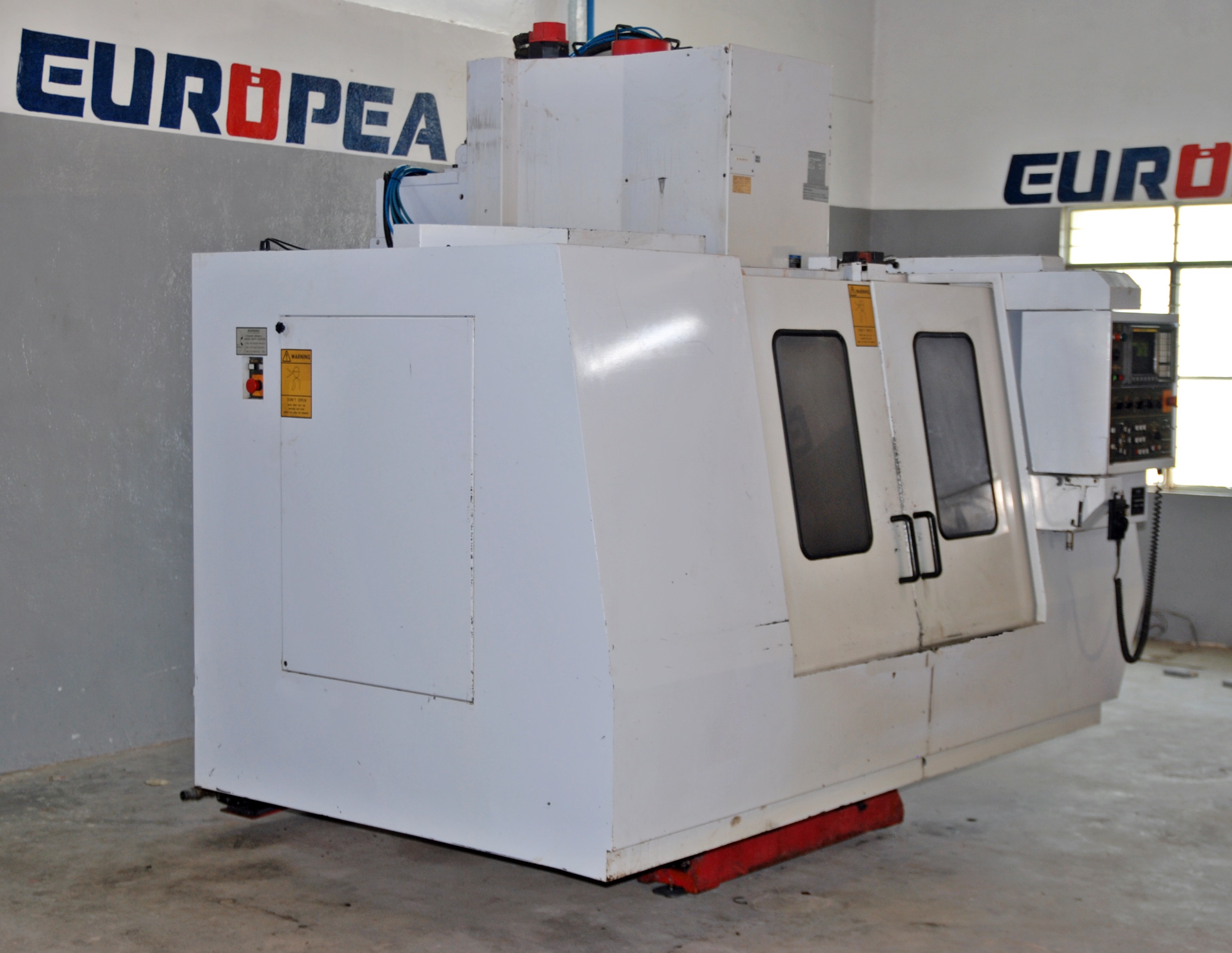

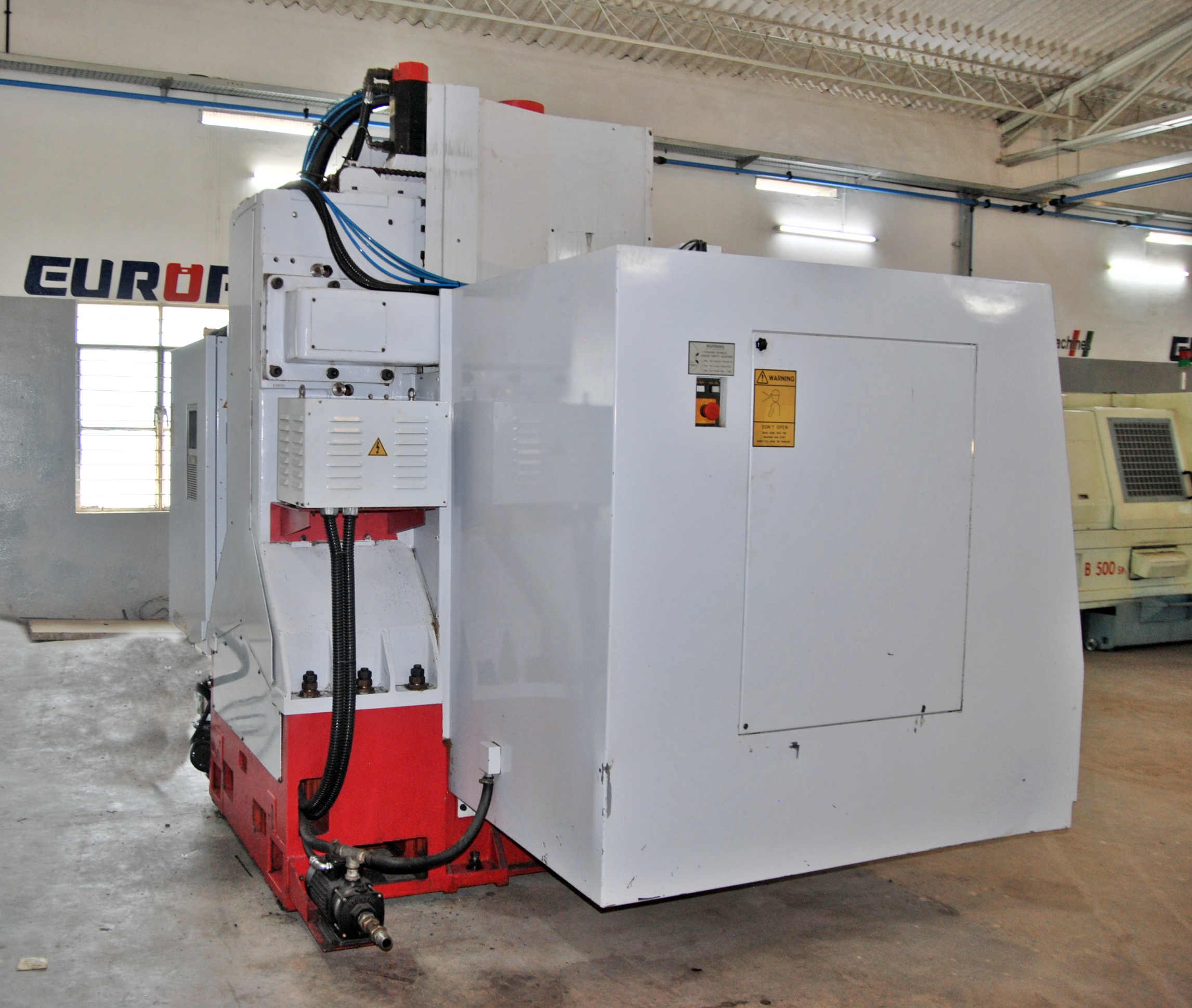

MACHINE DIMENSION
- Outer Dimension - 2900 X 2220 X 2686 MM (L X W X H)
- Net Weight (Approx.) - 3,700 Kg
- Gross Weight (Approx.) - 4,200 Kg
