Sold
General Specifications
- X Travel : 1000 MM
- Y Travel : 800 MM
- Z Travel : 850 MM
- B Axis Indexing : 360 Degree
- Table Size : 630 X 630 MM
- Table length : 630 MM
- Table Width : 630 MM
- Table Load : 1600 Kg

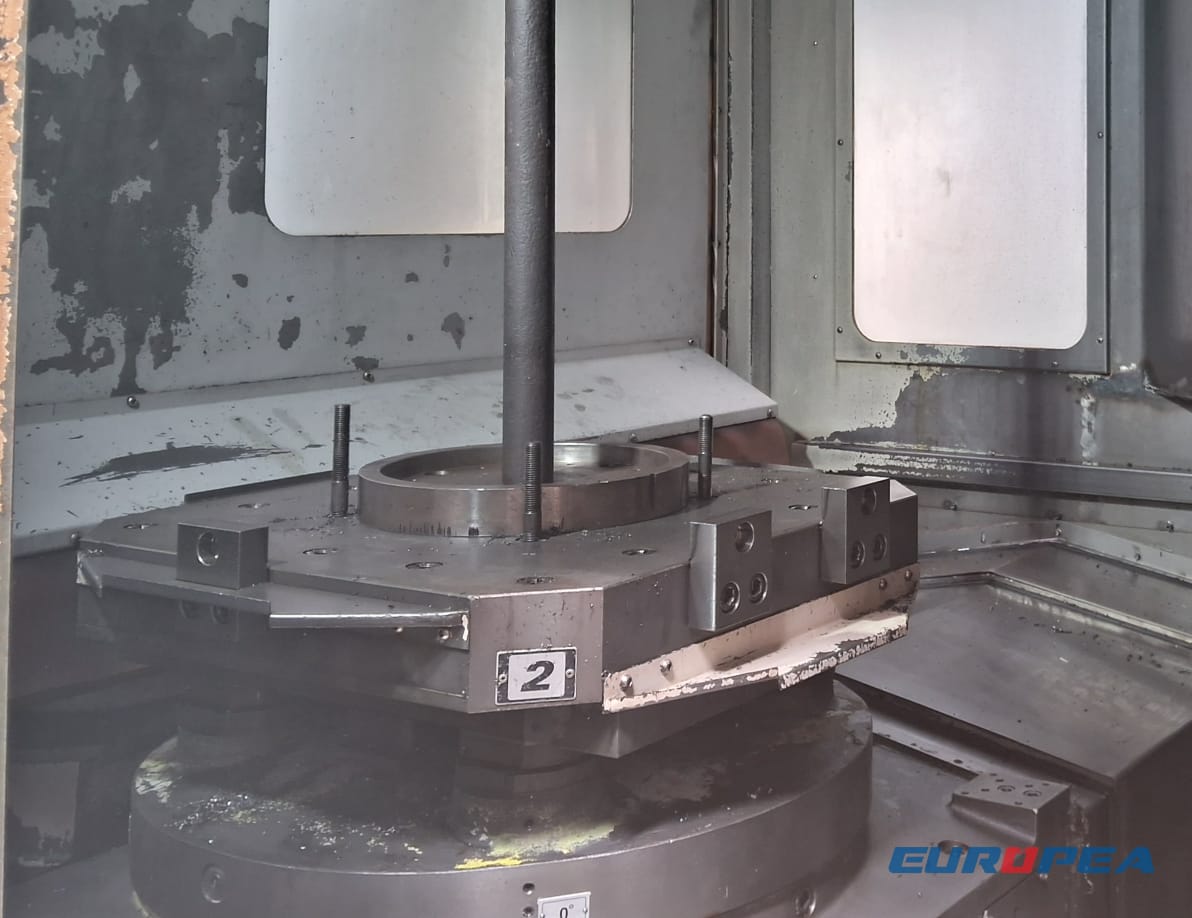

- No of Pallets : 2
- Spindle Taper : BT 50
- Spindle Power : 22/26 Kw

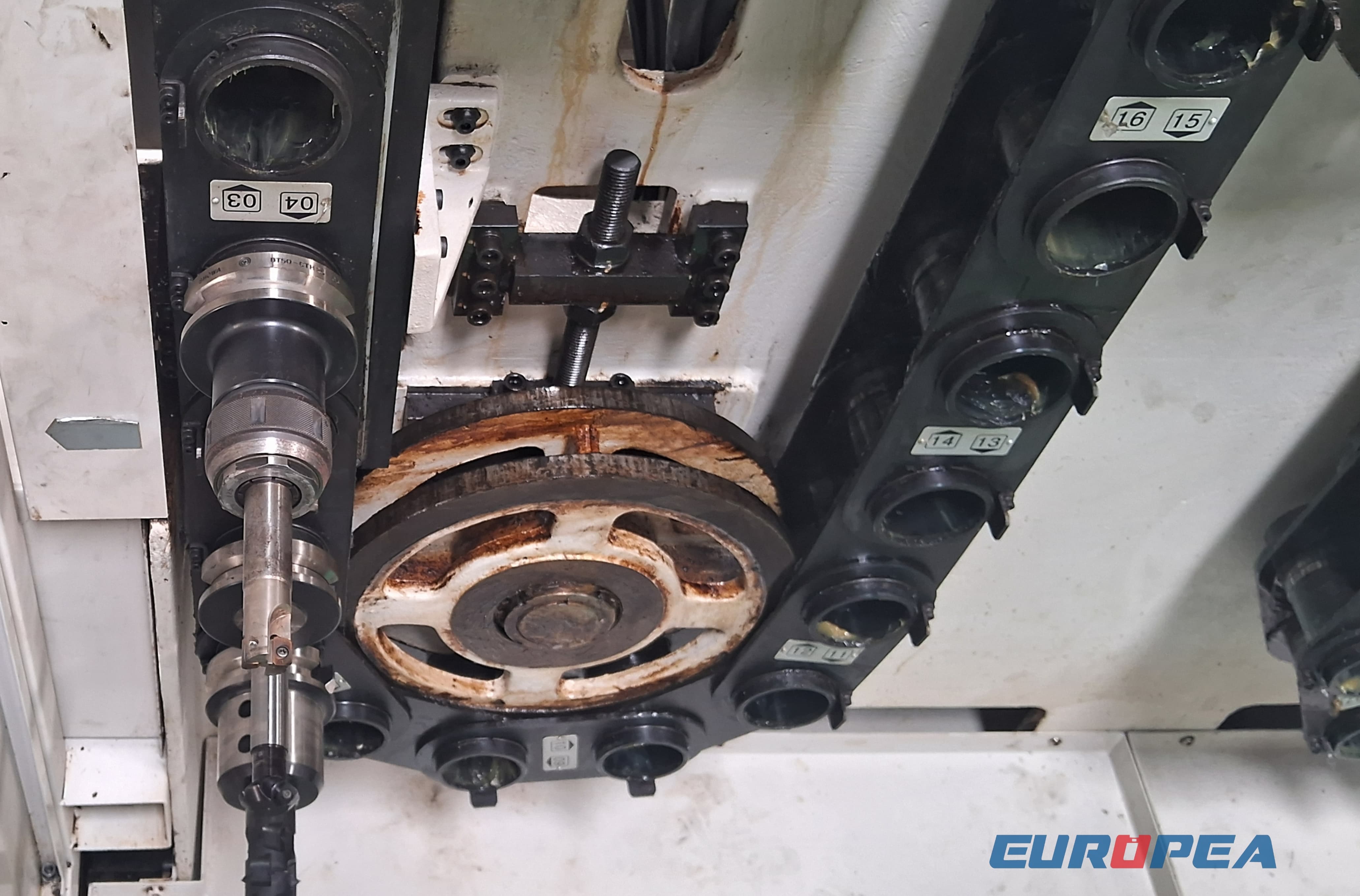

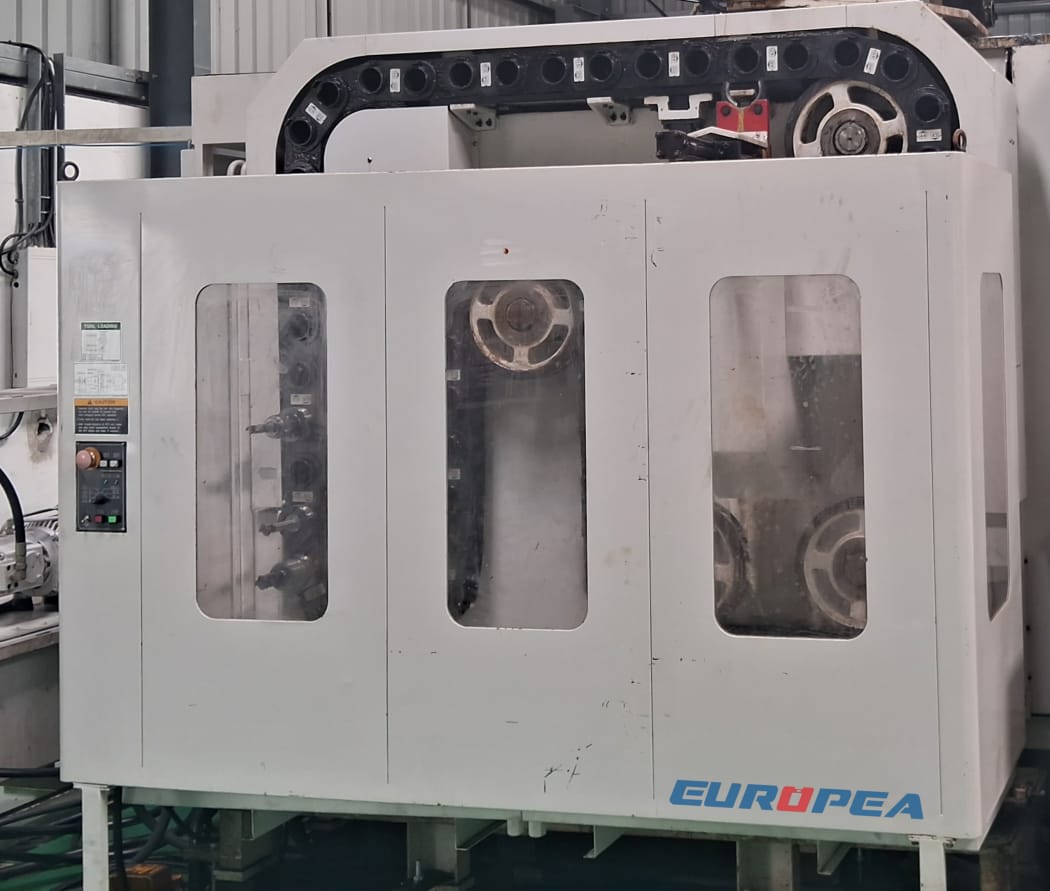

- ATC Pockets : 60 Pockets
- Spindle through Coolant : YES
- No Of Controlled Axis : 4
- Oil Skimmer : YES
- TOTAL POWER : 65 KVA
- : -
Product Info
- Machine Equipped with
- 1. Chip Conveyor
- 2. Coolant Tank
- 3. Base Leveling Pads
- 4. BT 50 Tool Holders
- 5. Spindle Oil Chiller Unit
- 6. Transformer

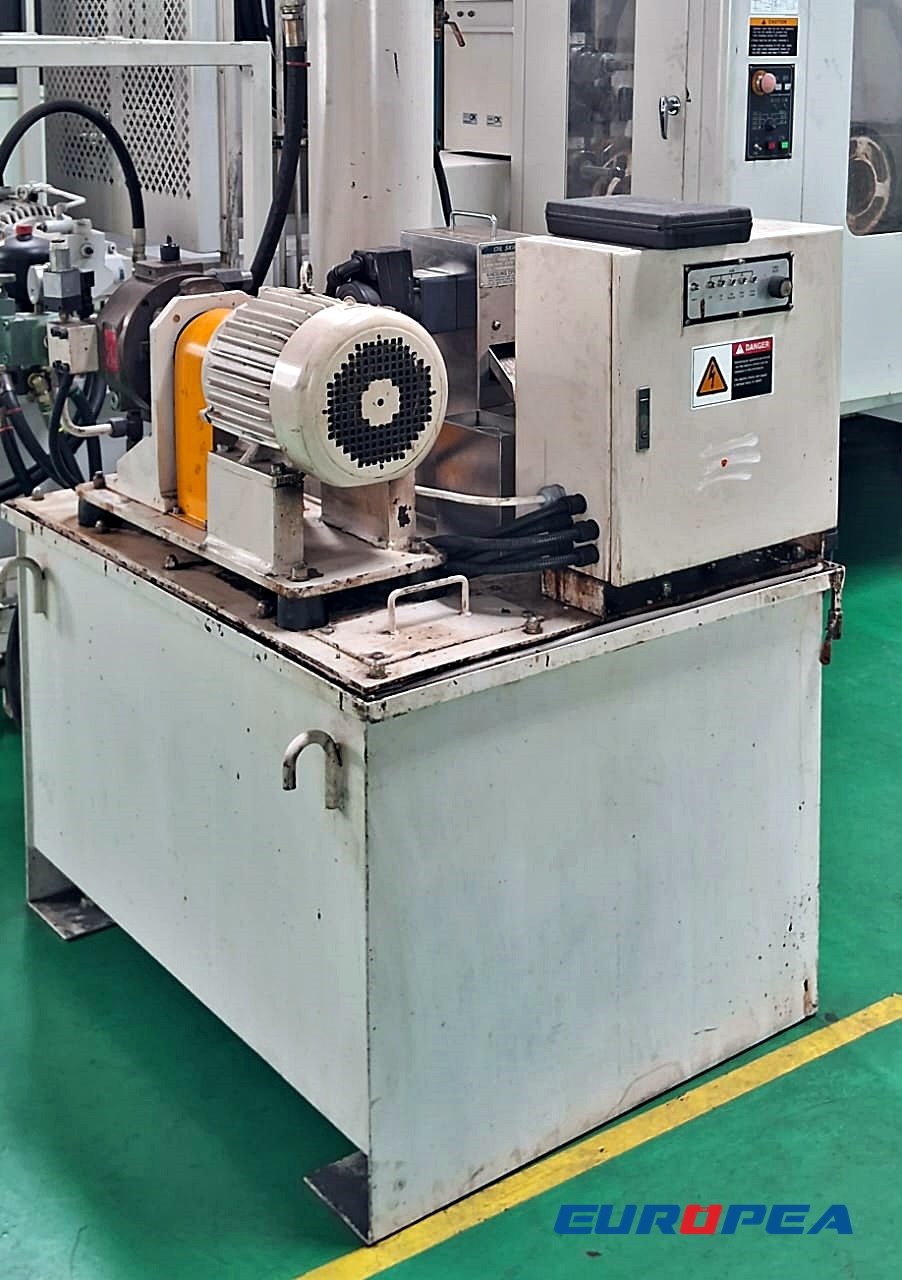

- 7. Coolant Filtration Unit (For Spindle Through Coolant)
- 8. Oil Skimmer
- 9. Machine Manual Books
MACHINE DIMENSION
- Length of the Machine - 6,500 MM
- Width of the Machine - 3,900 MM
- Height of the Machine - 3,100 MM
- Weight of the Machine - 18,000 Kg
