Available
General Specifications
- X Axis Travel : 700 mm
- Y Axis Travel : 400 mm
- Z Axis Travel : 400 mm
- Table Size : 700 mm x 400 mm
- Maximum Load Capacity : 160 Kgs
- : -

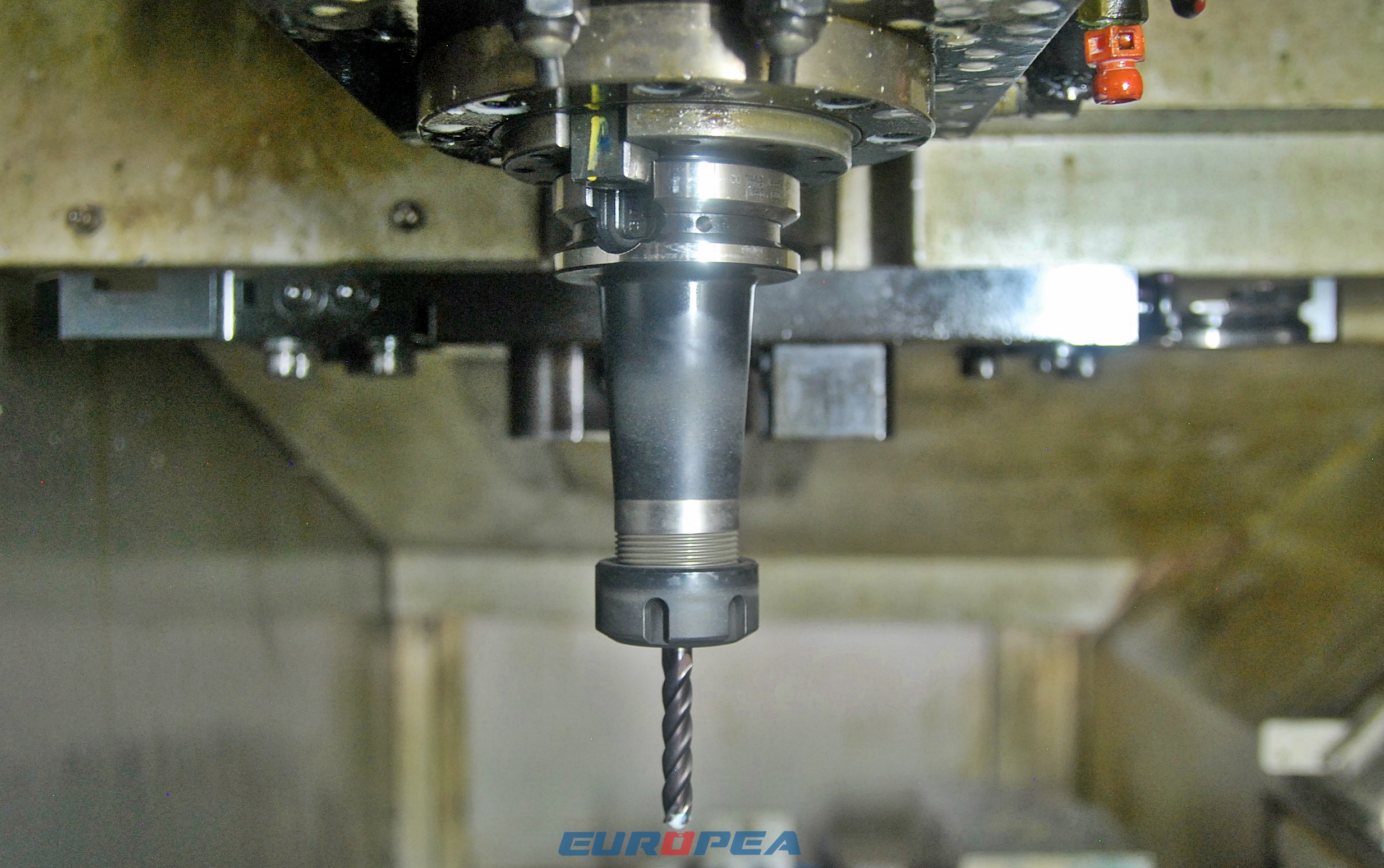

- Spindle: : -
- Spindle Nose to Table Surface : 200 to 6600 mm
- Spindle Taper : BT 40
- Maximum Spindle Speed : 24000 RPM

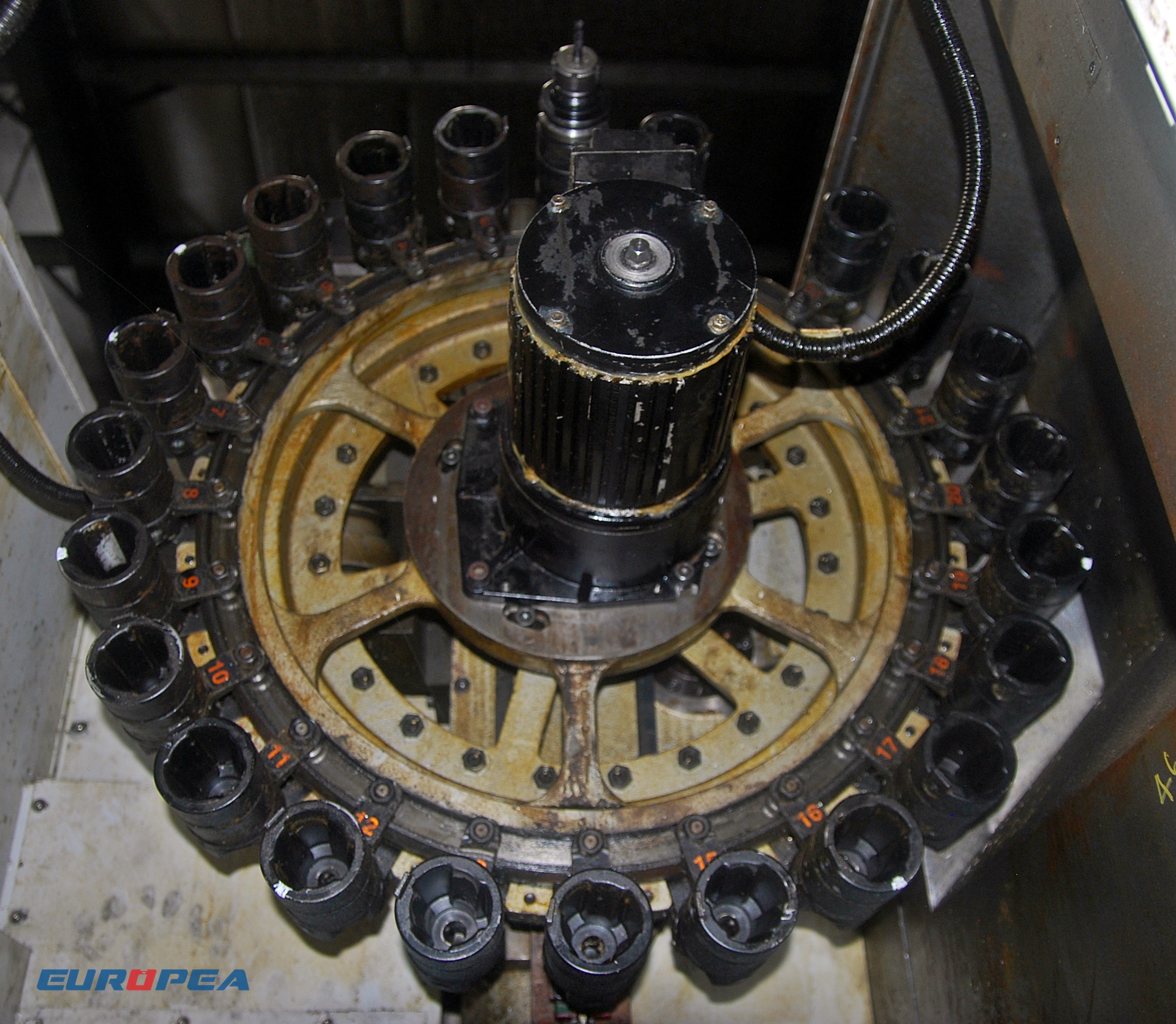

- ATC : -
- ATC Type : Servo
- No. Of Tool Pockets : 24 Pockets
- Maximum Tool Diameter : 75 mm
- Maximum Tool Length : 200 mm
- Maximum Tool Weight : 4.5 Kgs
- Tool Change Time : Tool to Tool
- : -
Product Info

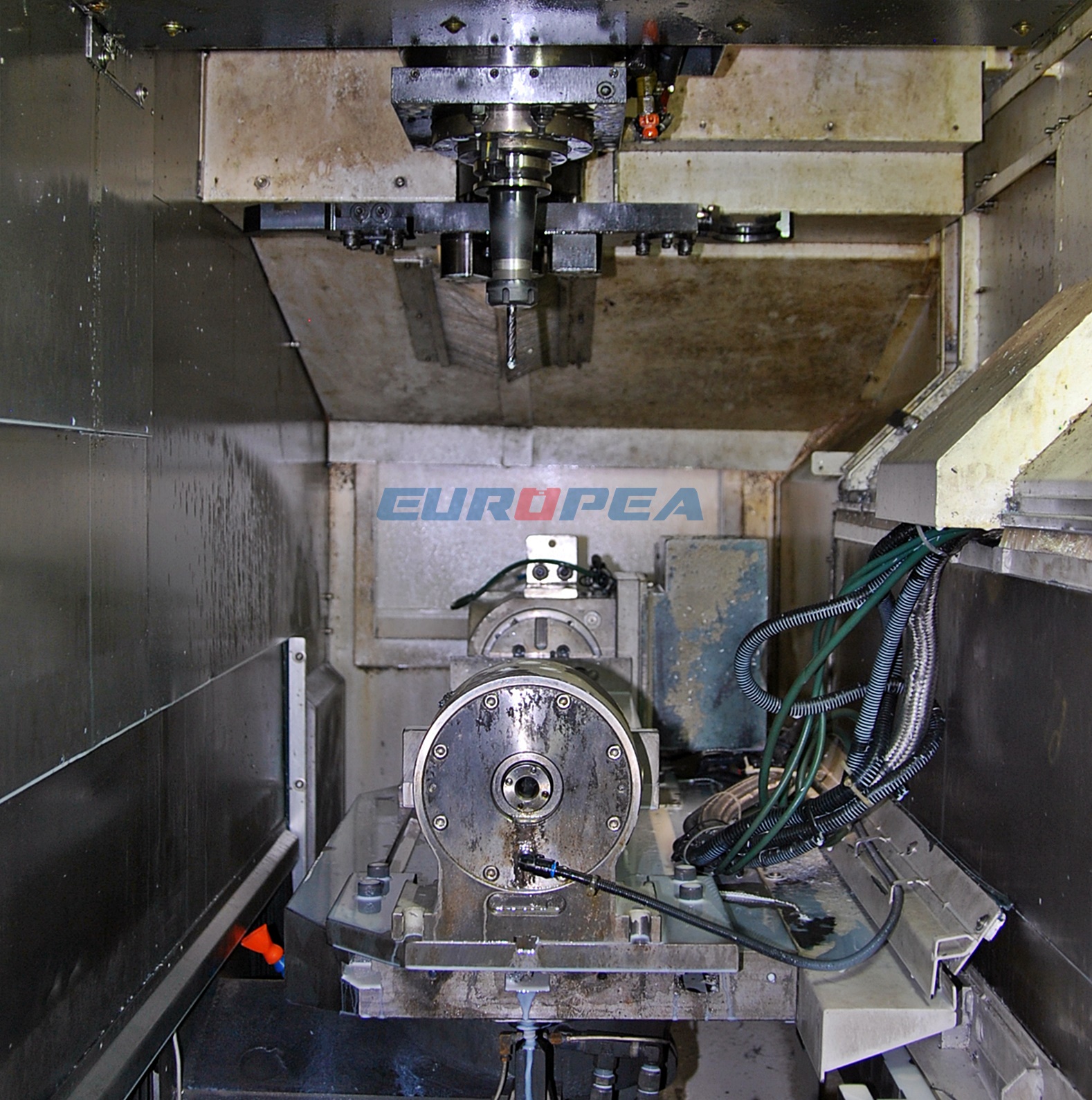

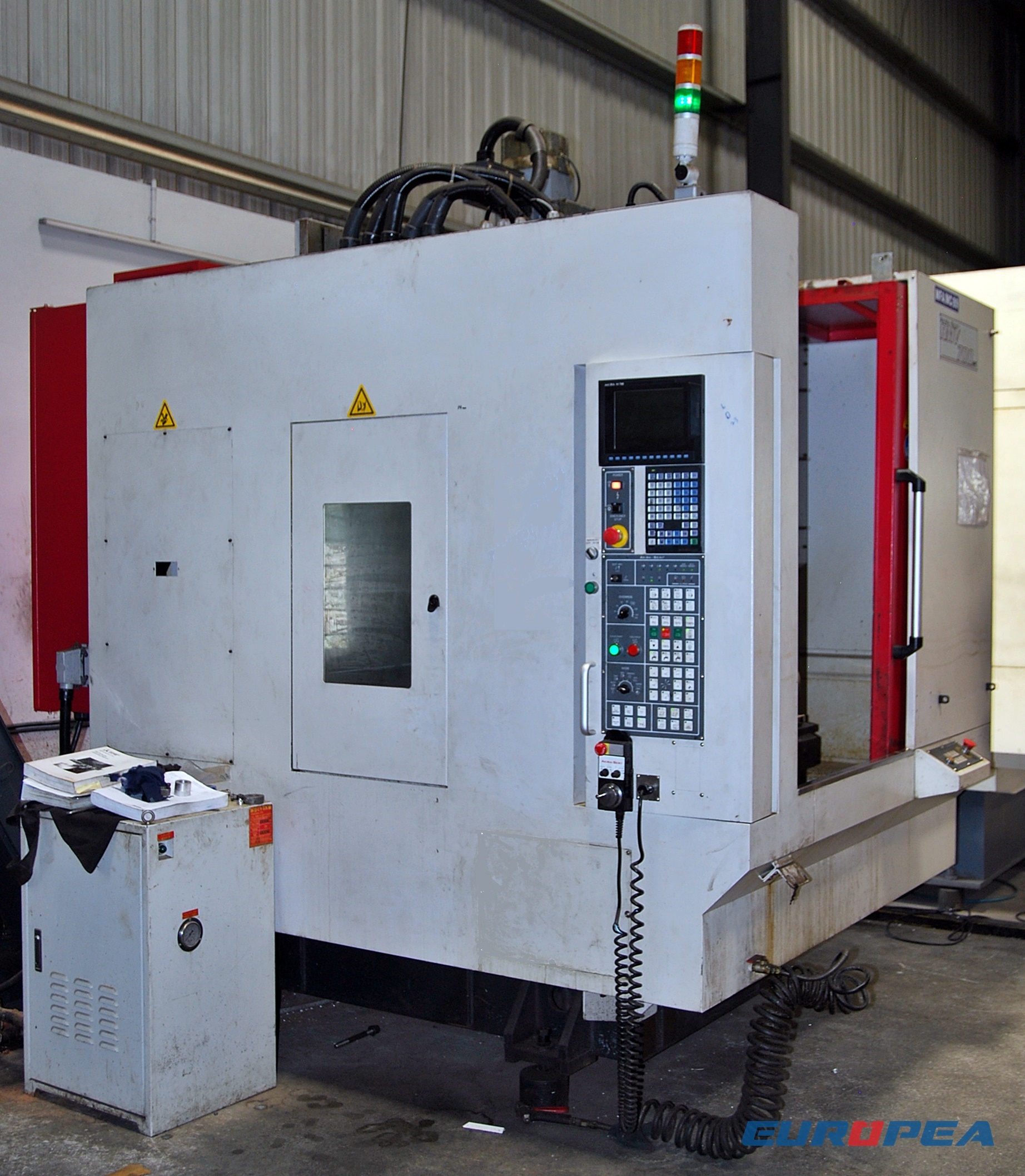

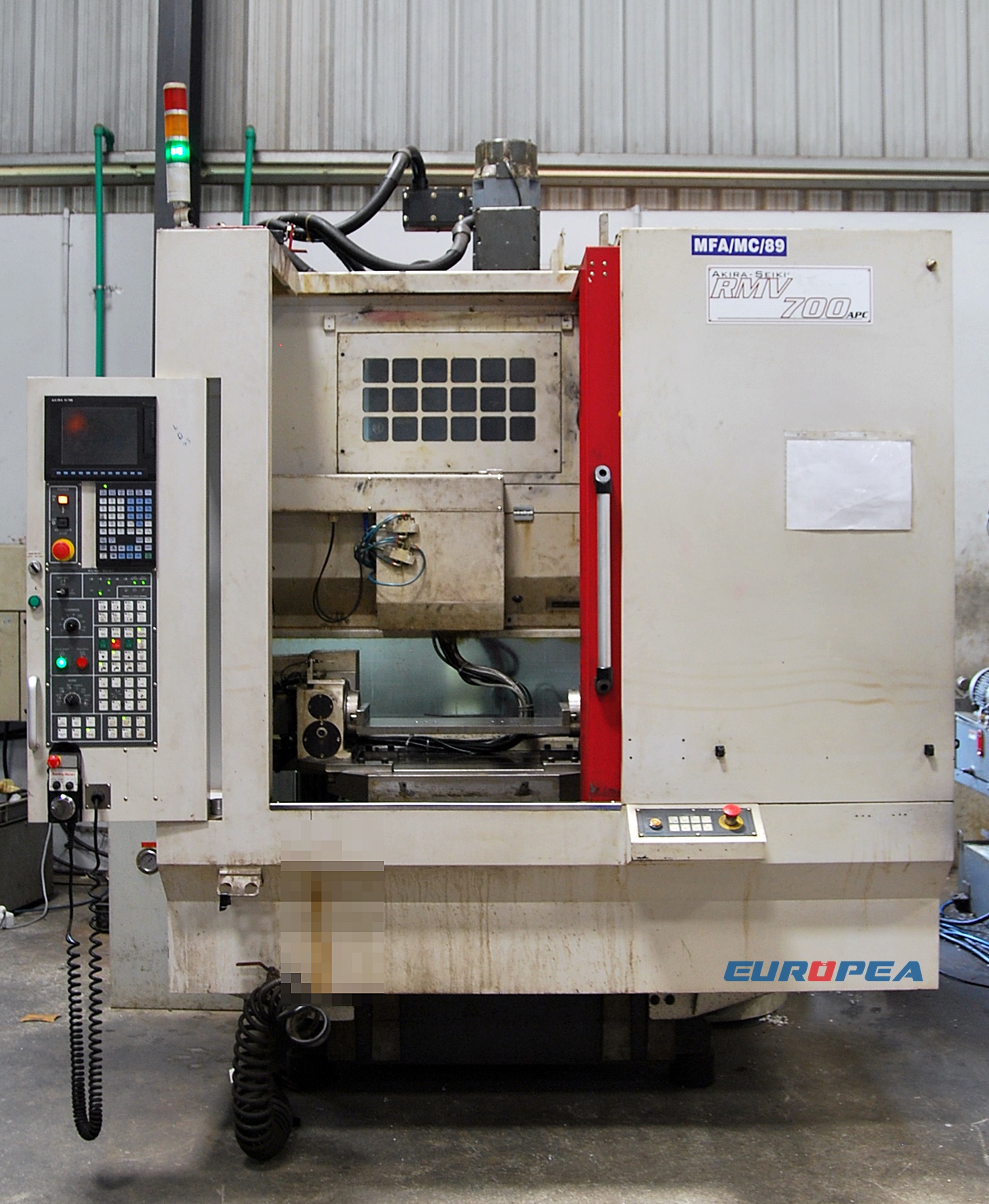

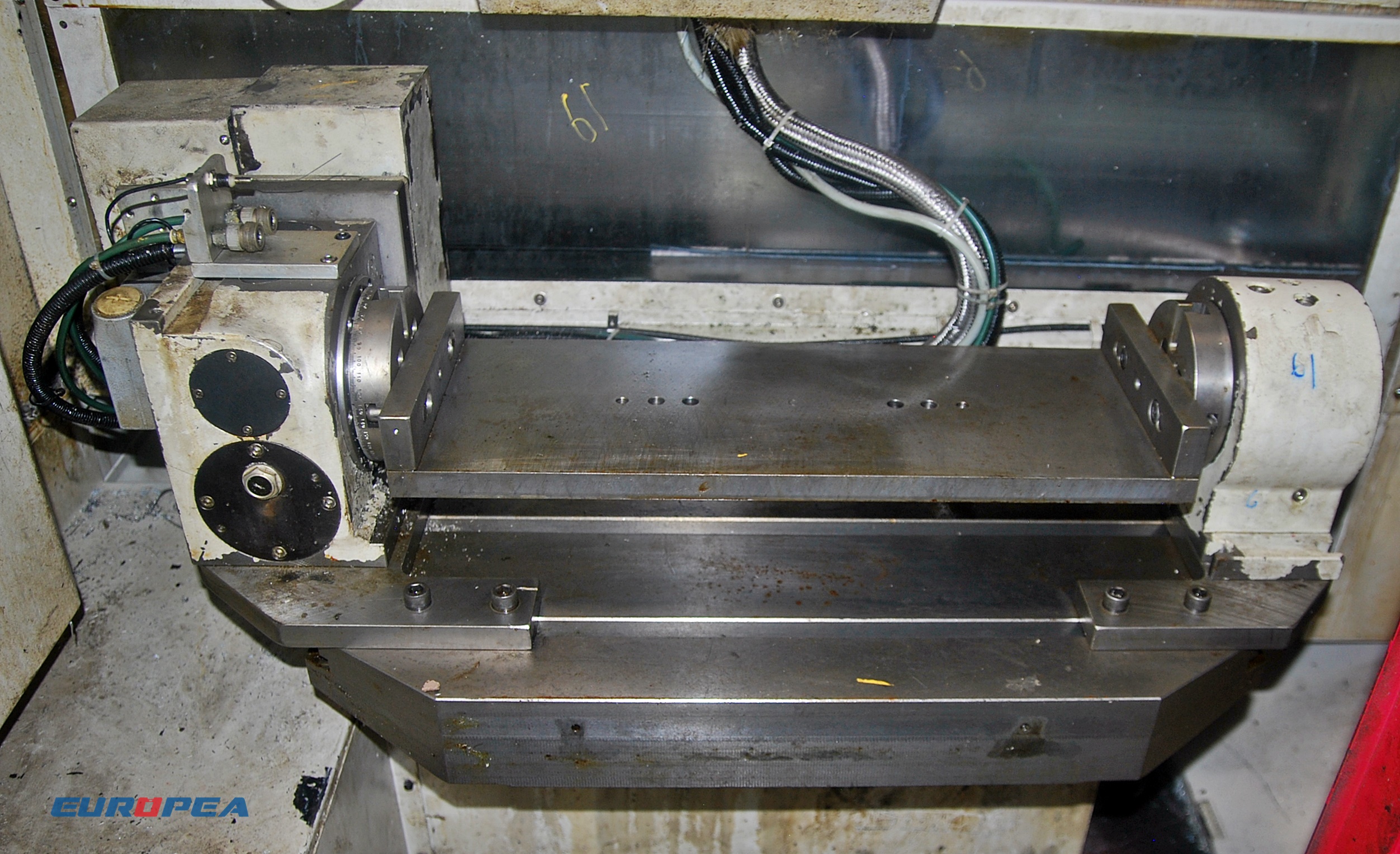

- FAST TWIN PALLETE MACHINE equipped with 4th and 5th Axis.
- And also Equipped with the Following Items:
- 1. Manual Books
- 2. Leveling Pads
- 3. Chip Conveyor
- 4. Coolant Tank
- 5. Spindle Chiller Unit
- 6. Spindle Through Coolant
MACHINE DIMENSION
- Floor Space Required - 1900 mm (W) x 3144 mm (L)
- Weight Of the Machine - 5,600 Kgs
OTHERS:
- Spindle Motor Output - 12 HP (Acceleration - 15 HP)
- Total Power Required - 25 kVA
- Coolant Tank Capacity - 150 Liters
