Available
General Specifications
- CAPACITY : -
- Max. Turning Length : 600 Mm
- Distance Between Center : 650 Mm
- Max. Swing Over bed : 450 Mm
- Max. Turning Diameter : 150 Mm
- : -
- HEADSTOCK : -
- Spindle nose : A2 – 5
- Spindle Diameter at front Bearing : Dia. 85 Mm
- Hole Through Spindle Diameter : Dia. 56 Mm
- Chuck Diameter : 6” Inch
- Bar Capacity : Dia. 45 Mm
- Spindle Speed : 6000 RPM
- Spindle Motor : 5.5 / 7.5 kw
- TRAVEL : -
- X Axis : 127 mm
- Z Axis : 630 Mm
- : -
Product Info

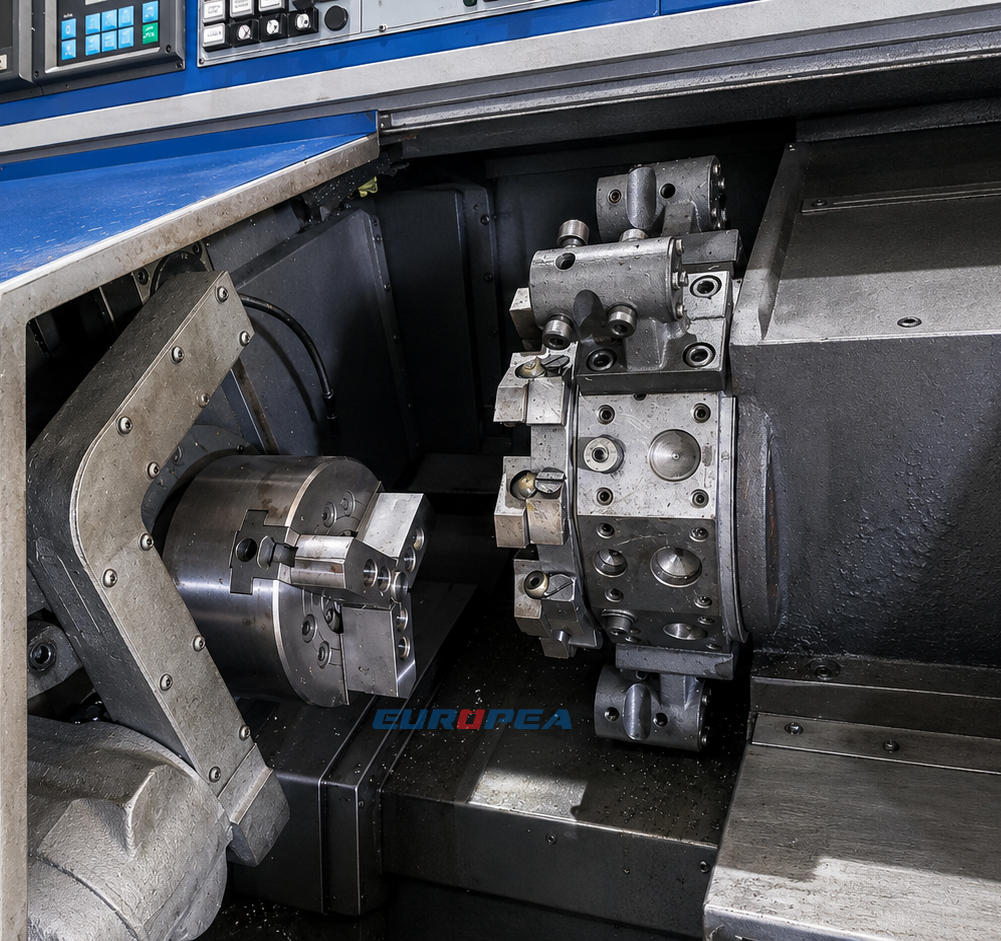

- DOUBLE DISC TURRET
- Type of Turret - Double Disc Tool Turret
- Number Of Station - 2 Disc X 12
- Tool Select - Bi-Direction programming with Automatic Selection of Shortest Route
- OD Turning Tool Size - 20 Square
- ID Boring Tool Size - 32 Diameter
TAILSTOCK
- Quill Diameter, - Dia. 75 Mm
- Quill Travel - Dia. 100 Mm
- Quill Taper - MT#4
- Axial thrust of Quill - 5300 N (At 2 MPa)
DIMENSION OF THE MACHINE
- Width - 2100 Mm
- Depth - 1015 Mm
- Height - 1600 Mm
- Weight - 2,600 kg
