Sold
General Specifications
- X Axis Travel : 209 MM
- Z Axis Travel : 600 MM
- Swing Over Diameter : 595 MM

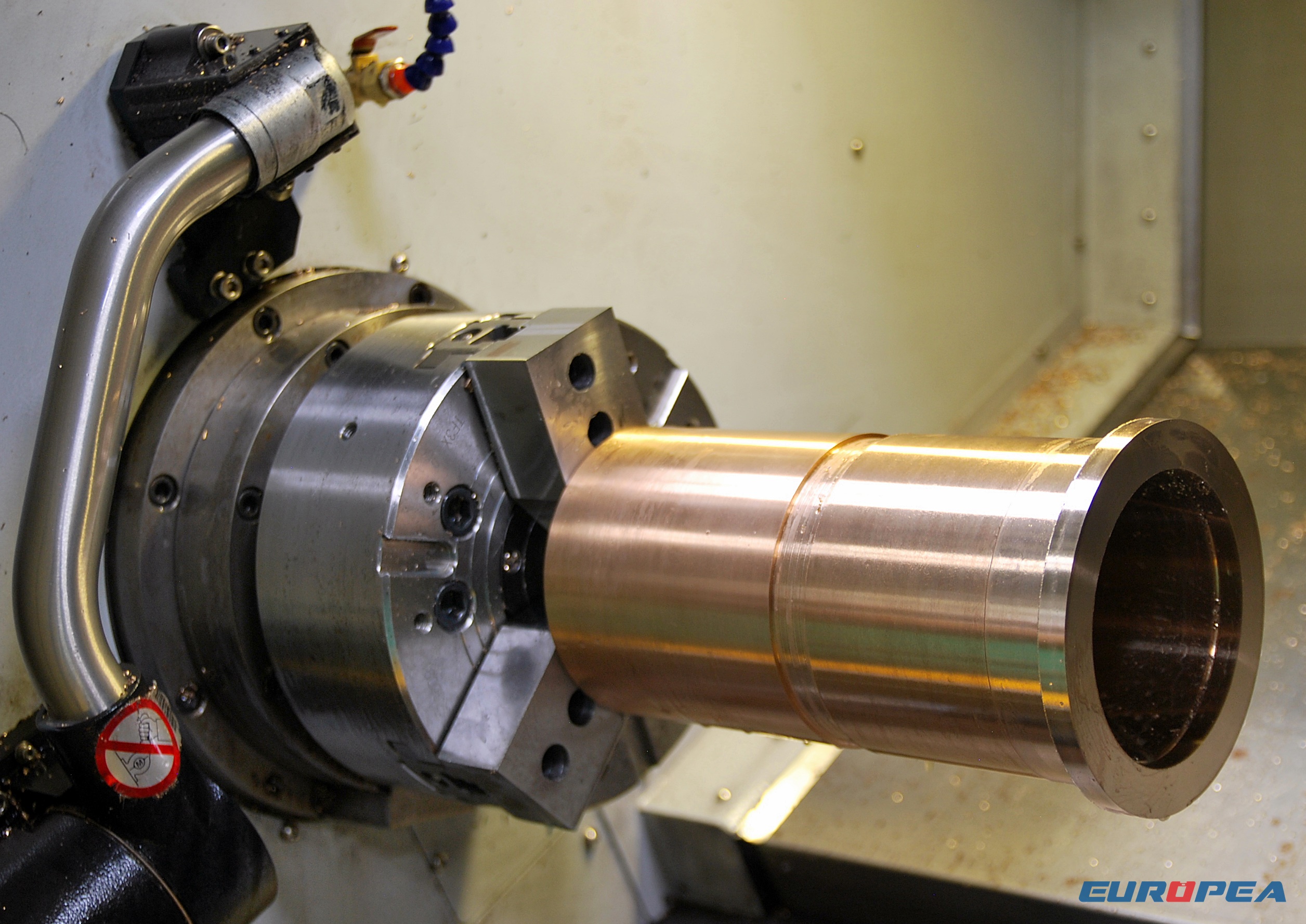

- Chuck Diameter : 250 MM
- Chuck Ready Spindle Config : A2 – 8
- Draw Tube Type : Hydraulics
- Through Hole Diameter : 78 MM
- Max. Machining Diameter : 356 MM
- Max. Turning Length : 600 MM
- Spindle Centre – Line Height : 1
- Peak Power Rating : 26 kW
- Max. Spindle RPM : 3500 RPM

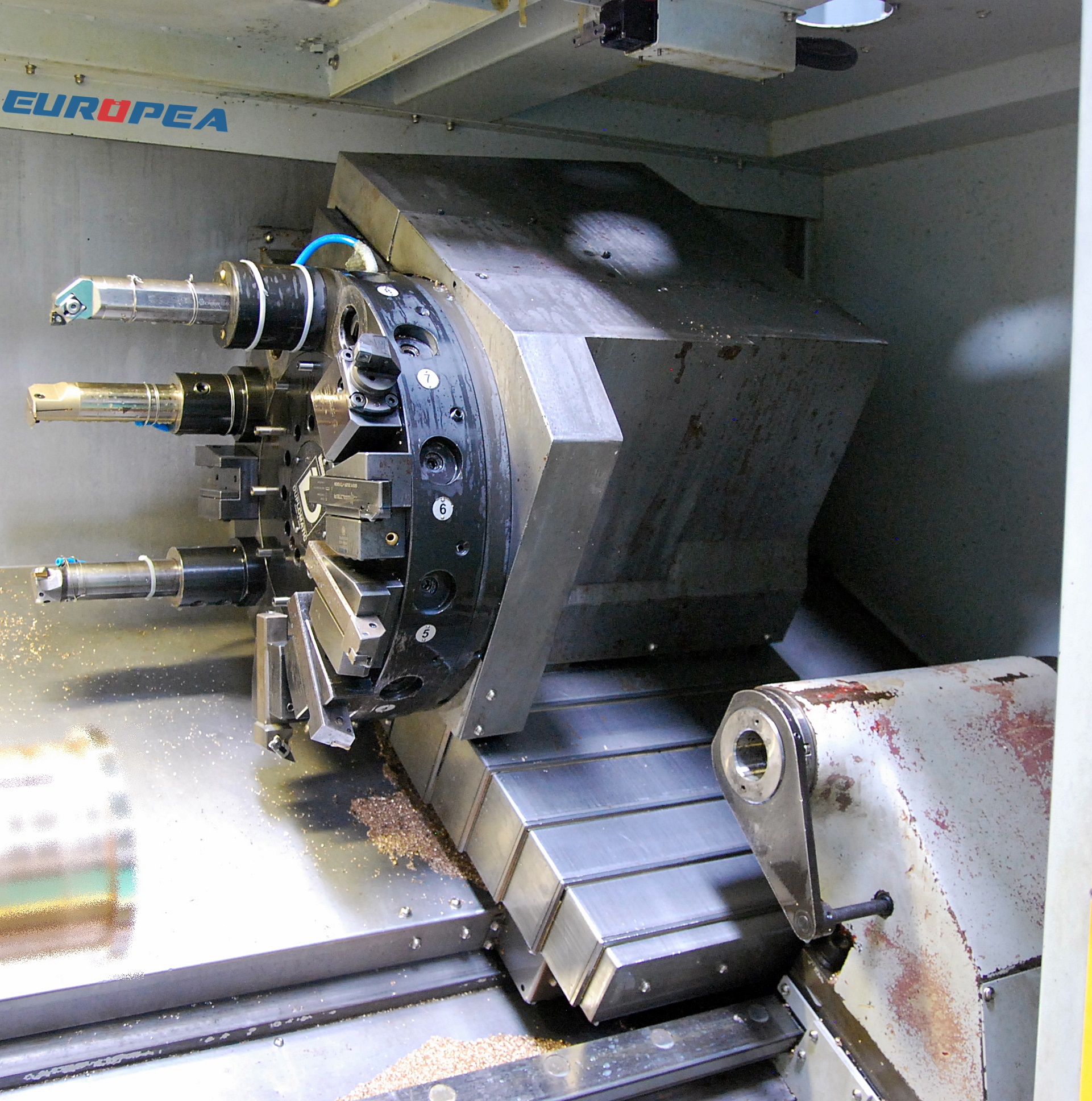

- No of Station : 12 tools
- Square Shank Tool Size : 25 MM
- Round Shank Tool Size : 40 MM
- Travel of Tailstock : 625 MM
- Tailstock taper : MT No.5
- : -
Product Info
- Machine Equipped with

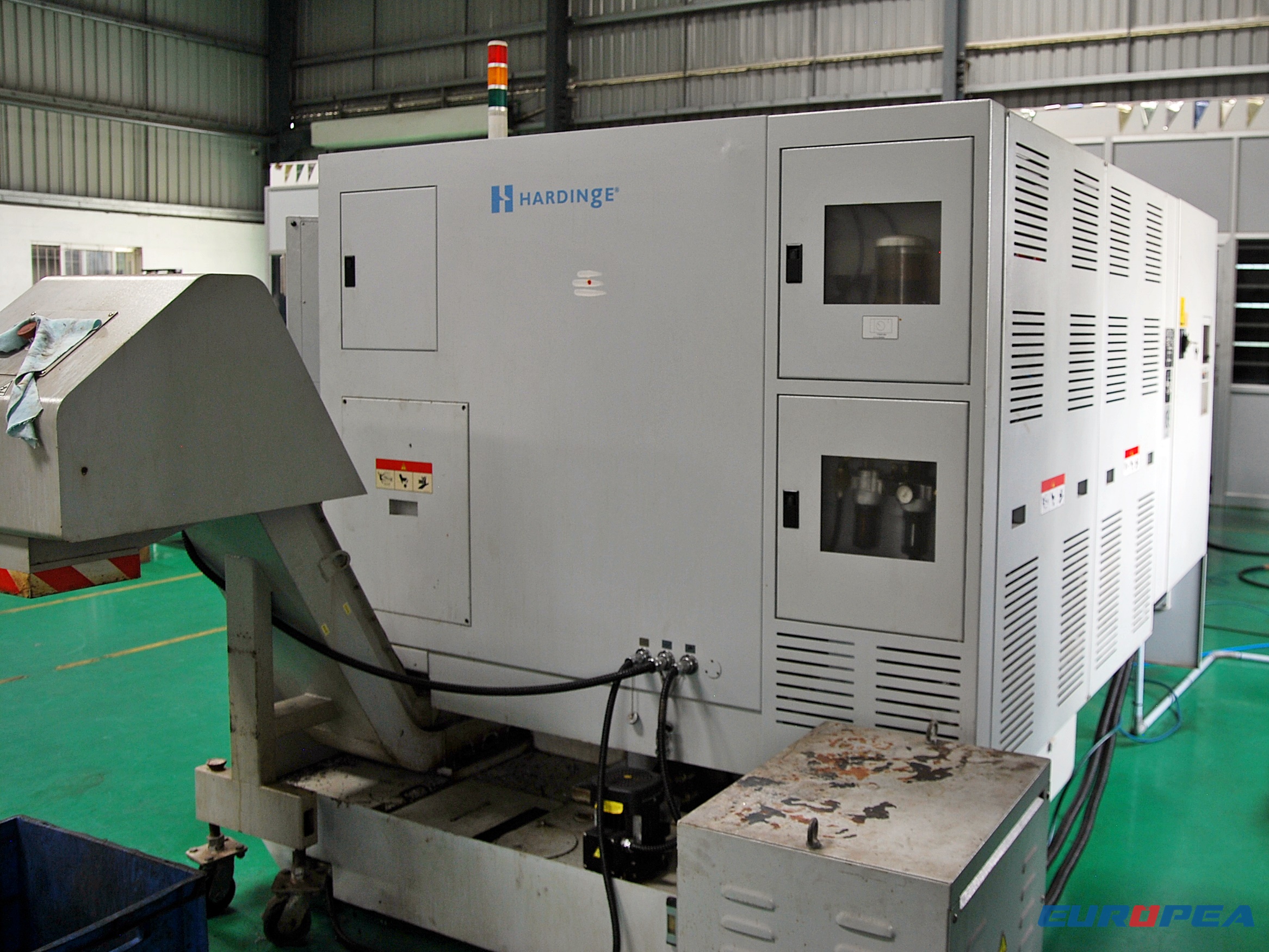

- 1. Chip Conveyor
- 2. Coolant Tank
- 3. Base Leveling Pads
- 4. Turning and Boring Tool Holders
- 5. Live Tool Holders
- 6. Machine Manual Books
MACHINE DIMENSION
- Length W/Chip Conveyor Option - 3,672 MM
- Depth W/Control Unit at Max. Swivel - 2,453 MM
- Height - 1,812 MM
- Floor Space Required - 68.89 Sq. Ft
