General Specifications
- Maximum Swing Daimeter : 580 mm
- Maximum Cutting Diameter : 344 mm
- Maximum Cutting length : 990 mm
- Standard Cutting Diameter : 290 mm
- : -

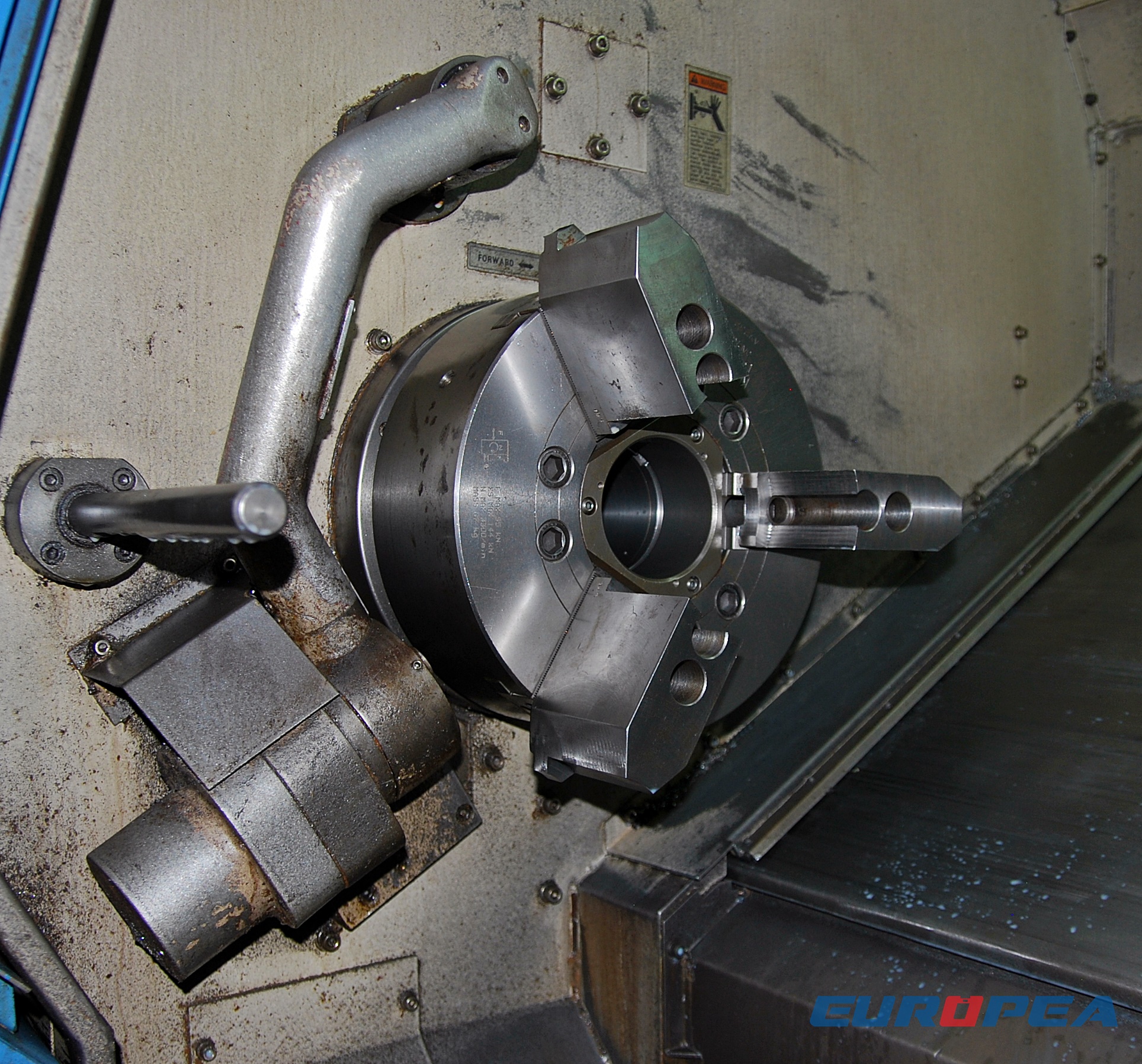

- Standard Chuck : B212A815
- Spindle Nose : ASA A-8
- Spindle Speed : 25 to 2500 RPM
- Spindle Bore Diameter : 104 mm

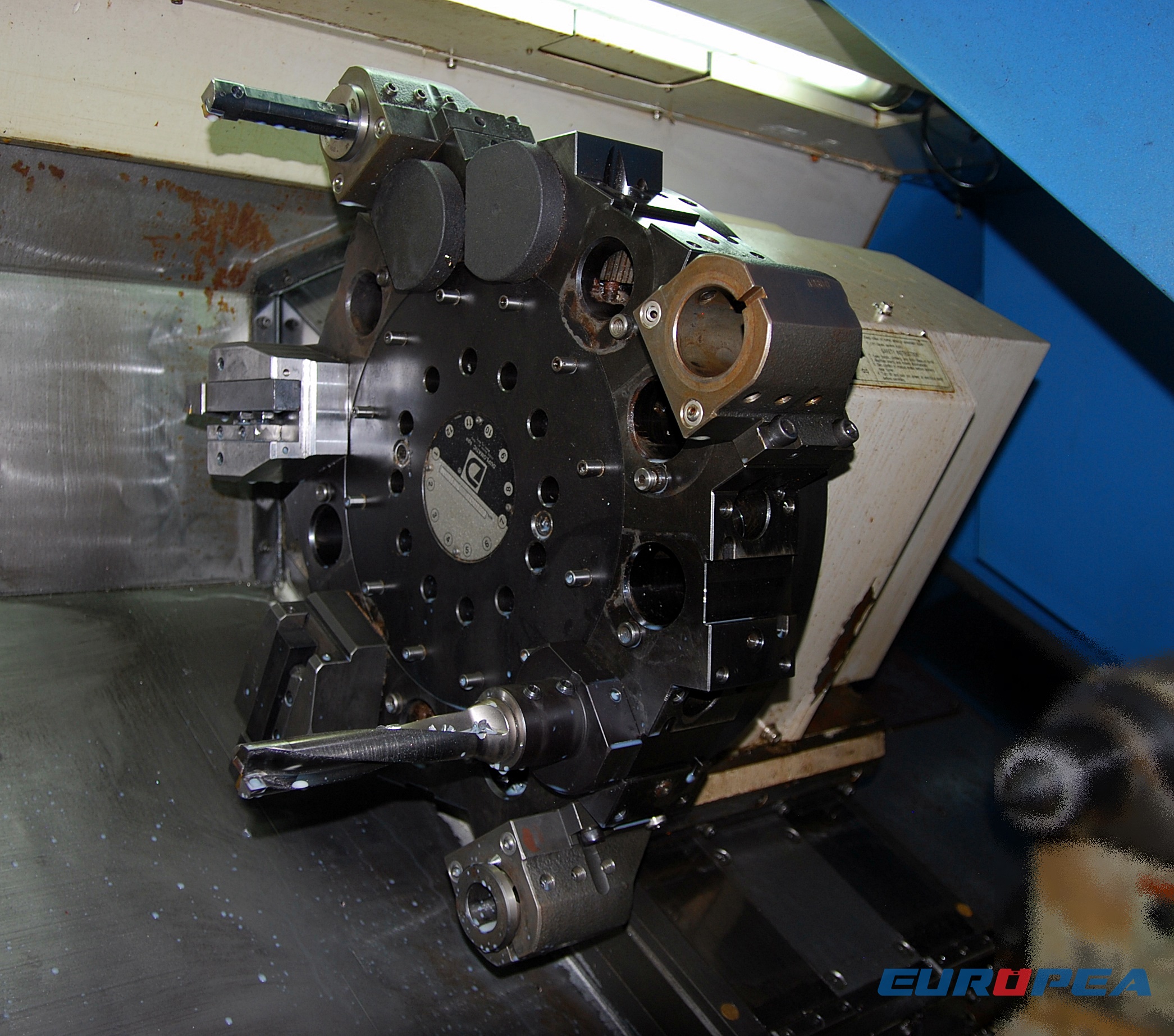

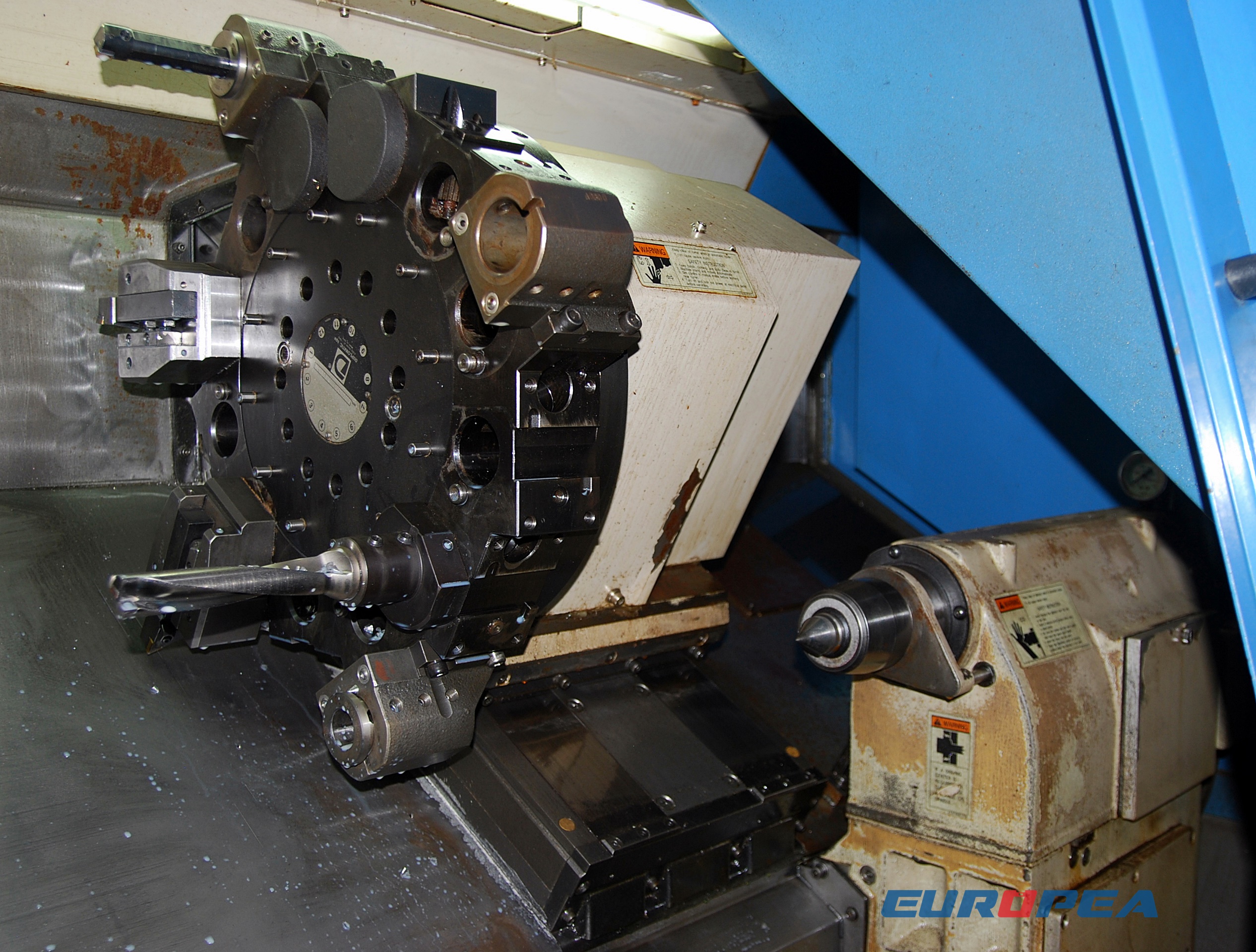

- Turret Type : VDI
- No of Tools : 12 Nos
- Tool Size OD : Dia 25 x 150 mm
- Tool : -
- Tool Size ID : Maximum 50 mm Diameter

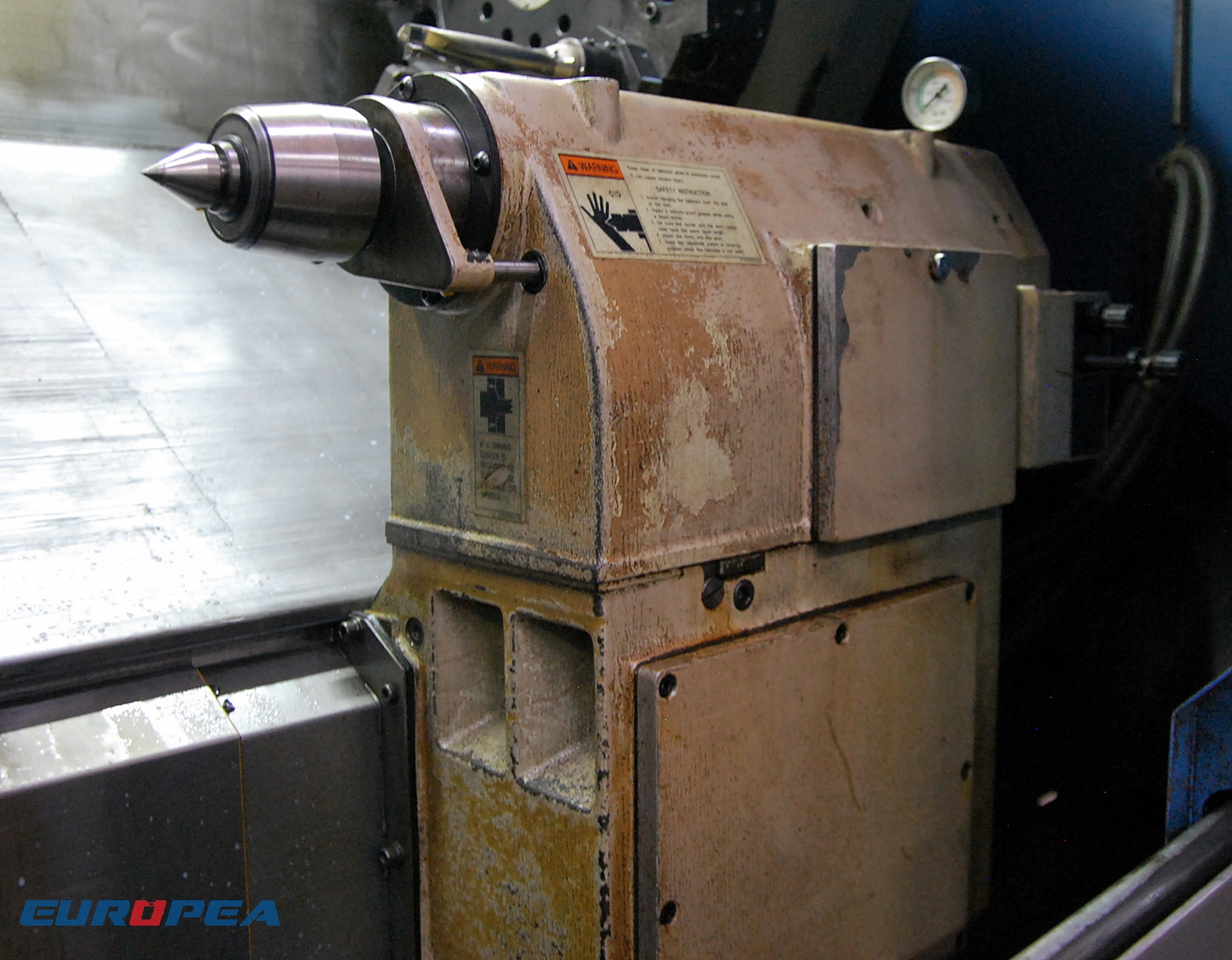

- Tail Stock Type : Fully Automatic
- Quill Diameter : 100 mm
- Quill Stroke Length : 130 mm
- Tailstock Body Stroke : 835 mm
Product Info
- Machine Equipped with the Following Items:
- 1. Manual Books
- 2. Chip Conveyor
- 3. Coolant Tank
- 4. Leveling Pads
- 5. Tool Holders
MACHINE DIMENSION
- Required Floor Space - 3,440 mm (L) x 1,982 mm (W)
- Height Of the Machine (from bottom of the machine) - 1,885 mm
- Weight of the Machine - 5,400 Kgs
OTHERS:
- MOTOR CAPACITY:
- 1.Spindle Motor (30 Min/ Continuous) - 22 / 20 kW
- 2. X Axis Motor - 2.5 kW
- 3. Z Axis Motor - 4.2 kW
- 4. Coolant Motor - 0.18 kW
- 5. Hydraulic Motor - 1.5 kW
- TANK CAPACITY:
- 1.Hydraulic Tank - 50 Liters
- 2. Coolant Tank - 190 Liters
- 3. Lubrication Tank - 2 Liters
- TOTAL POWER REQUIRED FOR THE MACHINE - 52.5 kVA
