TC MORI SEIKI ZL 15 1990 FANUC O TTC

  • MORI SEIKI | ZL - 15 | No

  • Turning Center

  • Control : FANUC O - TTC

    Year : 1990


Enquire Now
TC MORI SEIKI | ZL - 15 | No FANUC O - TTC 1990
Sold

General Specifications

  • Swing Over bed : 480 mm
  • Swing Over Cross Slide : 370 mm
  • Max. Machining Diameter : 160 mm
  • STD. Machining Diameter : 40 mm
  • Max. Machining Length : 100 mm
  • X Axis Travel : 195 mm
  • Z Axis Travel : 390 mm
  • : -
  • MAIN SPINDLE : -
  • Main Spindle : 10 / 7.5 HP
  • Spindle Speed : 50 to 5000 RPM
  • Spindle Nose : JIS A - 5
  • Spindle Bore : 35 mm
  • SUB SPINDLE : -
  • Sub Spindle : 7.5/5 HP
  • Turret : 12 Tools
  • Sub Turret : 6 Tools

Product Info

  • Controller - FANUC O - TTC
  • Equipped with

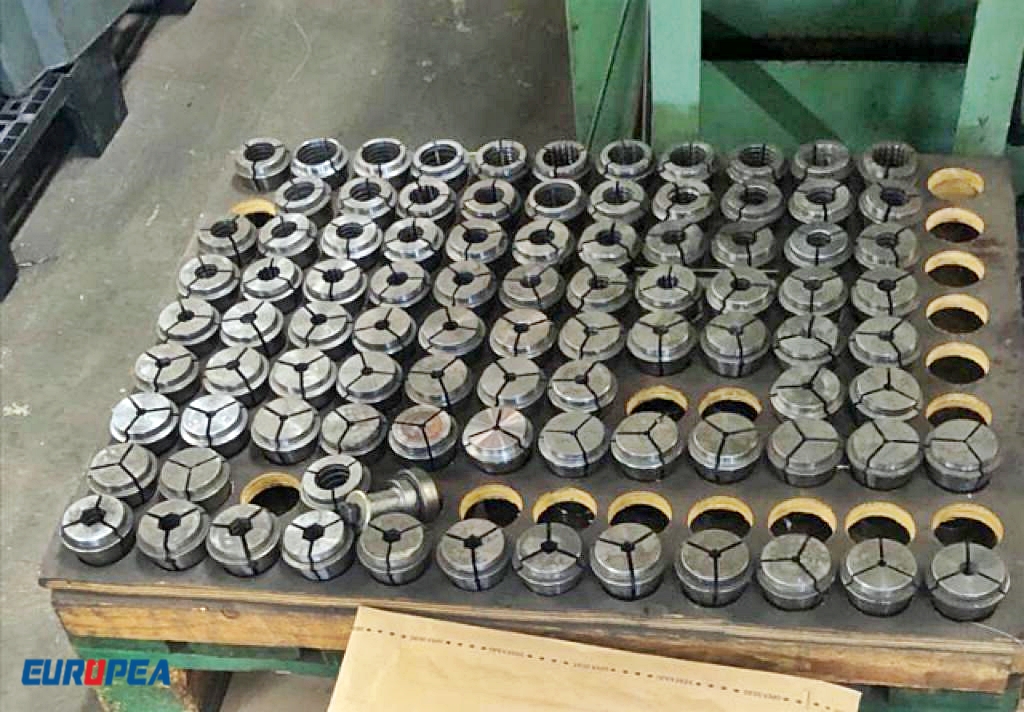

  • 1. Collet chuck with diameter of 2.5 to 45 mm
  • 2. About 15 Tool holders

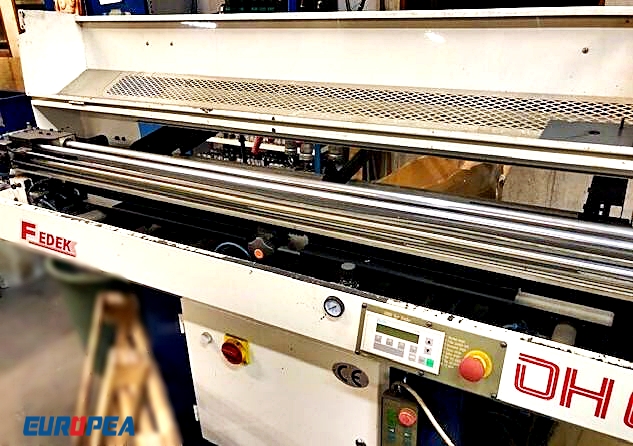

  • 3. With FEDEC DH65L Bar feeder with Bar Diameter of 6 to 65 mm and Length of 1500 mm
  • 4. Manual Books and Other Accessories.
